Adjusting Belt Tracking

IMPORTANT: If baler is equipped with net wrap, check for a 1-3 mm (3/64-7/64 in.) gap at the lower front belt guide straps. If there is too much gap, belts will not track correctly and cause damage to the belts. (See CHECKING AND ADJUSTING LOWER NET WRAP GUIDE in Service-Net Wrap section.)

NOTE: Belt tracking must be checked before adjustments are made. (See CHECKING BELT TRACKING in this section)

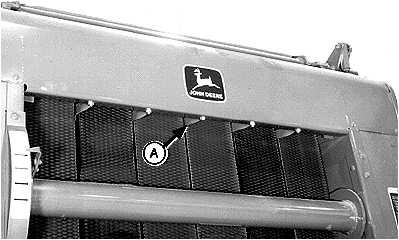

1. If belts are not centered at the lower belt guide (A), make the following adjustment:

NOTE: If baler is equipped with net wrap and the belts track to the right, lower right-hand end of lower rear gate roll.

• If belts track to the left, raise RIGHT-HAND end of lower rear gate roll (B). If net wrap unit is installed, lower RIGHT-HAND end of lower rear gate roll (B).
• If belts track to the right, raise LEFT-HAND end of lower rear gate roll.

  NOTE: Light contact with belt guides is acceptable.

A-Lower Belt Guide
B-Lower Rear Gate Roll

AG,OUO6017,1516 -19-12OCT99-1/4

2. If belts are not centered at the upper front belt guide (A), make the following adjustments:

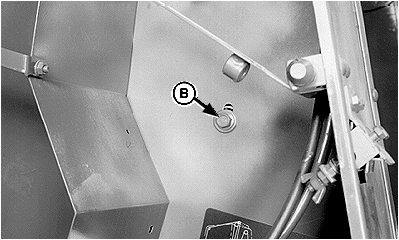

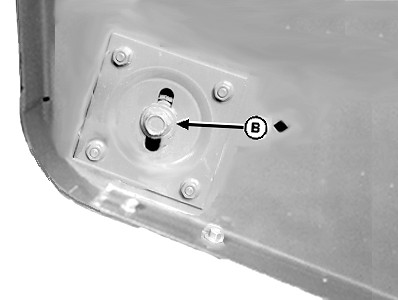

• If belts track to the right, raise the RIGHT-HAND end of the front idler roll (B).

• If belts track to the left, raise the LEFT-HAND end of the front idler roll.

  NOTE: Light contact with belt guides is acceptable.

AG,OUO6017,1516 -19-12OCT99-2/4

3. If belts are not centered at the upper rear guide, make the following adjustment:

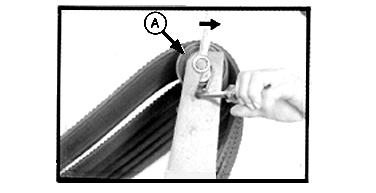

• If belts track to the right, move the RIGHT-HAND end of the take-up roll (A) in the direction shown in the short leg portion of the "L" shaped slot.
• If belts track to the left, move the LEFT-HAND end of the take-up roll (A) in the direction shown in the short leg portion of the "L" shaped slot.

  NOTE: Light contact with belt guides is acceptable.

A-Take-Up Roll

AG,OUO6017,1516 -19-12OCT99-3/4

4. If outside belts track to the outside, rubbing the lower belt guide or side of baler, adjust as follows:

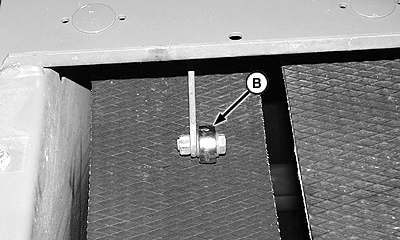

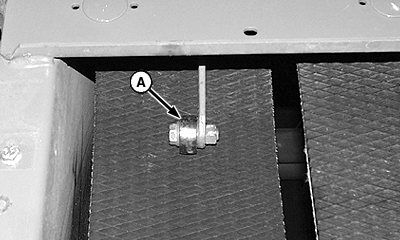

• Move roller from the normal outside position (A) on the sender arm to inside position (B). The belt will track towards the middle of the baler.

A-Roller (Normal Outside Position)
B-Roller (Inside Position)
