Annually

Baler Wheel Bearings and Gathering Wheel Bearings (If Equipped)

Remove the wheels; then clean, repack, and adjust bearings. Use John Deere EP Moly or an equivalent SAE multipurpose type grease, or wheel bearing grease.

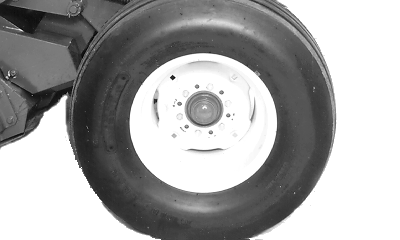

E39740

Baler Wheel Shown

AG,OUO6017,1691 -19-05NOV99-1/3

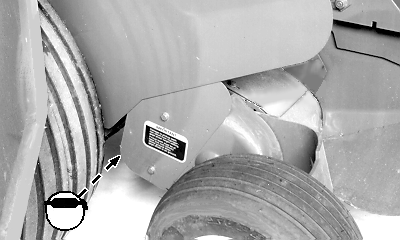

Pickup Idler Arm (Regular and MEGATOOTH ™ Pickup)
E44438

Right-Hand Side

MEGATOOTH is a trademark of Deere & Company

AG,OUO6017,1691 -19-05NOV99-2/3

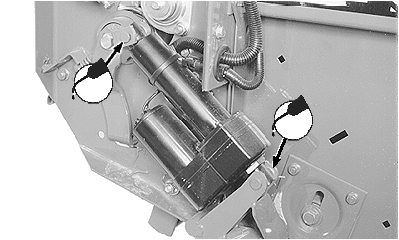

Net Wrap (If Equipped)

NOTE: Actuator cover (not shown) must be removed to access lower actuator pin, loosen screws and remove.

Lubricate rod end and base end actuator mounting pins with SAE30 or heavier oil.

E47611

AG,OUO6017,1691 -19-05NOV99-3/3
