Correcting Net Wrap Feeding Problems
Net wrap controller NET CUTOFF indicator will not flash if net wrap did not feed or if roll is empty. Indicator will stay lit if net wrap did feed but was not cut off. To correct net feeding or knife problems: 1. Disengage tractor PTO, shut off tractor engine and disconnect net wrap controller power plug from tractor convenience outlet. 2. Open net wrap cover. |
|
CAUTION:
Avoid injury from entanglement in moving rolls. Disengage tractor PTO, shut off tractor and disconnect net wrap controller power plug before servicing.
EX,556PS,L1 -19-17SEP97-1/6 |
|

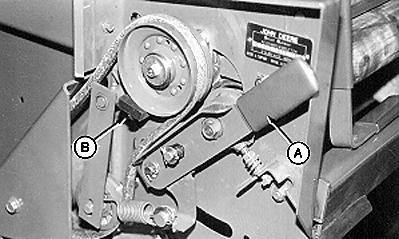

3. Pull lever (A) out and forward to disengage roller brake pad (B). 4. Inspect brake pad and belt for wear or damage. Replace if necessary.
|
|
EX,556PS,L1 -19-17SEP97-2/6 |
|

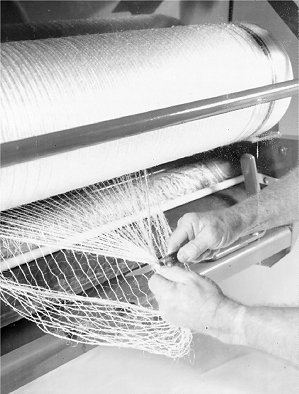

IMPORTANT: Do not cut net wrap material from rubber feed rolls. Any knife cuts in the rubber roll covering may result in more frequent wrapping around the rolls and may require roller replacement. 5. Pull net wrap material away from the supply roll and steel roll. Cut net wrap material. |
|
EX,556PS,L1 -19-17SEP97-3/6 |
|

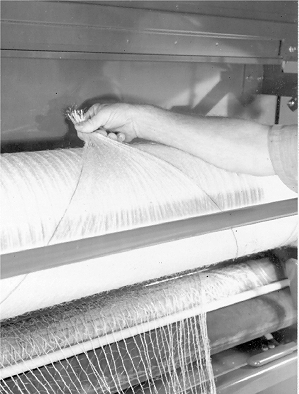

6. Gather the free end of the net wrap and lay over the top roll of wrap material. |
|
EX,556PS,L1 -19-17SEP97-4/6 |
|
7. Remove and discard all of the wrapped material, including all strings, staples, etc. 8. Wipe off rubber drive rolls and check for any sticky material. If necessary, rolls may be washed with soap and water. NEVER use solvents to clean rubber rolls. Allow rolls to dry before threading or wrappage may occur again. 9. Thread net wrap material. (See THREADING NET WRAP AND ROUTING THROUGH ROLLS in Preparing Baler for Net Wrap section.) 10. If static electricity or dampness causes net wrap material to cling to the rolls, dust the rubber drive rollers with talcum powder such as A51237, available from your John Deere dealer. 11. If feed roll has been cut, repair if necessary (See REPAIRING CUTS ON FEED ROLL in this section.) |
|
EX,556PS,L1 -19-17SEP97-5/6 |
|

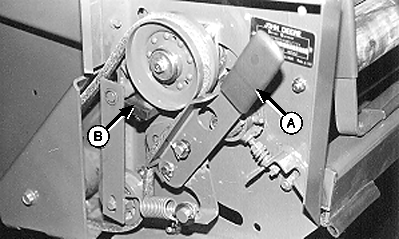

12. Pull lever (A) out and toward the rear of machine to engage roller brake pad. Make sure brake pad (B) contacts belt pulley. 13. Close net wrap cover.
|
|
EX,556PS,L1 -19-17SEP97-6/6 |
