Operating Transmission Control Levers

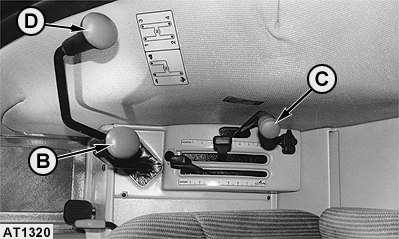

The transmission gear shift lever (D) operates in an H-pattern.

• Center position is neutral.
• Move the lever to the left and forward from neutral to select the first gear.
• Move the lever to the left and rearward from neutral to select the second gear.
• Move the lever to the right and forward from neutral to select the third gear.
• Move the lever to the right and rearward from neutral to select the fourth gear.

12 + 12 Speed Transmission (all tractors)

The transmission range lever (B) has three positions:

• Forward is low range
• Rearward is high range
• To the right and forward is creeper

24 + 24 Speed Transmission (40 km/h; 25 mph version of 5300/5400 tractors)

The high-low transmission lever (C) provides a two-speed additional range (optional):

• Forward is low range
• Rearward is high range

24 + 24 Speed Transmission (40 km/h; 25 mph version of 5500 tractors)

The high-low transmission lever (C) provides a two-speed additional range (optional):

• Forward is high range
• Rearward is low range
