OMER360107: 5310, 5410 and 5510 Tractors, Block File: AT_5SOM_134_19

Adjusting Head Lamps

1. Open the hood.

2. Turn screws (A and B) counterclockwise to lower lamp beam or clockwise to raise lamp beam.

3. To adjust lamp beam in toward center of tractor, turn screw (A) counterclockwise and screws (B and C) clockwise, using an equal number of turns on each screw.

4. To adjust beam out from center of tractor, turn screws (B and C) counterclockwise and screw (A) clockwise, using an equal number of turns on each screw.

NOTE: Clips (D) need not be removed for adjustment.

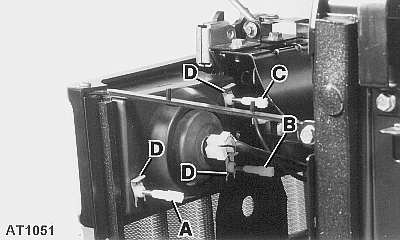

left-hand lamp shown

AT,5SOM,134 -19-01JAN97-1/1
