Check Brake System Oil Level

The brakes are hydraulically operated by an independent circuit having a separate oil tank.

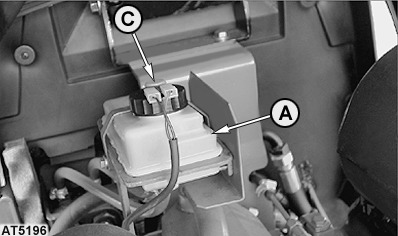

Check the level in the reservoir (A). Add fluid if required, using the same transmission type oil (see Section 80 "Fuel, Lubricants, Hydraulic Oil and Coolant").

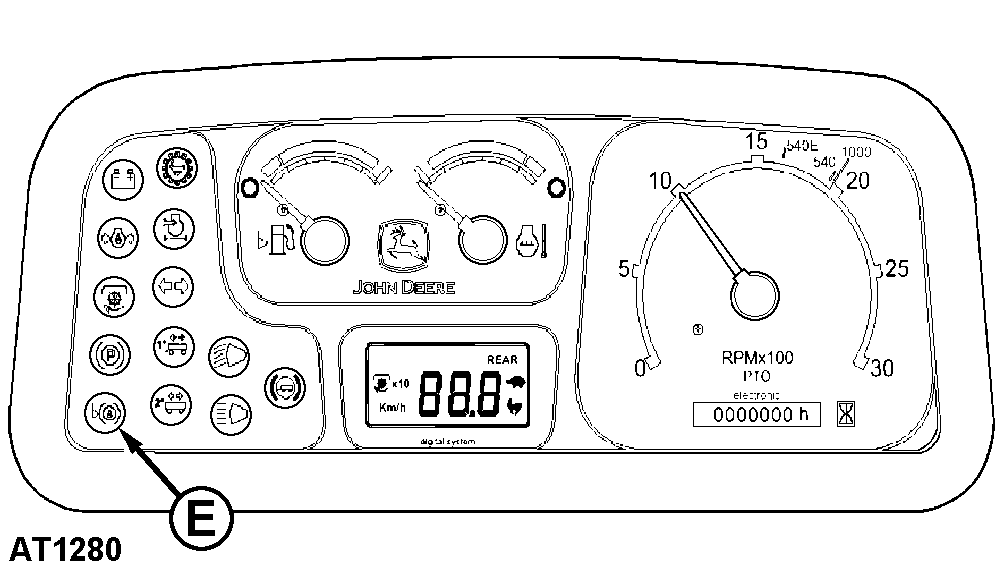

Check also for eventual leakages in case of low level. The level is also controlled by the indicator control light (E) at dash board that will glow up when level is low. With the main switch ON, press with a finger on button switch (C) to check if indicator control light is correctly functioning.

OULXA64,000009D -19-21MAY01-1/1
