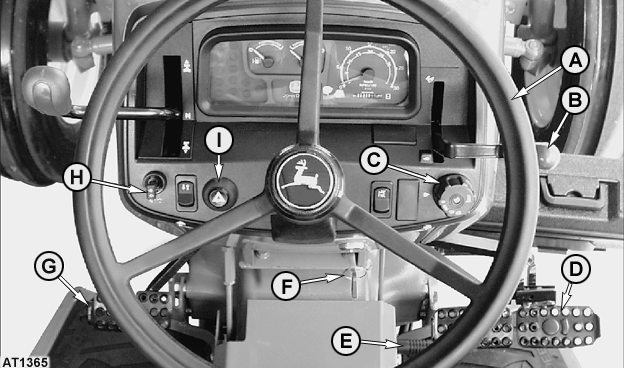

A-Steering wheel
B-Hand throttle
C-Light switch

D-Brake pedals
E-Foot throttle

F-Main switch
G-Clutch pedal

H-Turn signal switch
I-Hazard warning light switch

OULXA64,00001FB -19-20JUN01-1/3

J-PTO clutch lever
K-Selector lever (PTO)¹

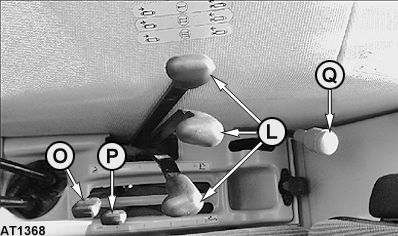

L-Selective control valve levers

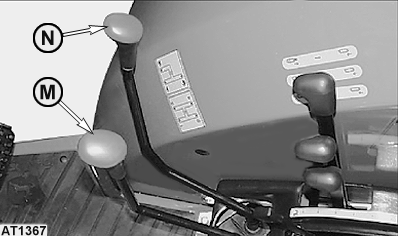

M-Gear shift lever
N-Range shift lever
O-Rockshaft position control lever
P-Rockshaft load control lever
Q-Mechanical Hi-Lo shift lever¹
R-Hydraulic Hi-Lo shift control switch¹

OULXA64,00001FB -19-20JUN01-2/3

B-Front wheel drive switch

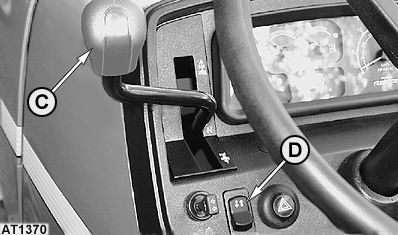

C-Forward/neutral/reverse lever
D-Priority valve switch

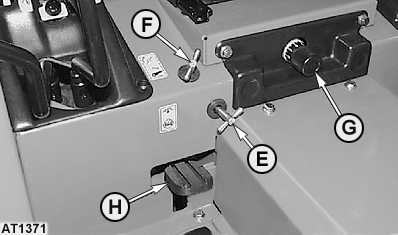

E-Rockshaft rate-of-drop valve
F-Rockshaft, sensitivity control valve
G-Flow control valve knob
H-Differential lock pedal

OULXA64,00001FB -19-20JUN01-3/3
