PTO Reducing Gear

The standard PTO speed is 540 rpm for 5310 tractors and 540/540E rpm for 5410 and 5510 tractors.

Optionally the tractors can be equipped with:

  • 5310 - with 540/540E rpm PTO
  • 5410 and 5510 - with 540 rpm PTO
  • 5310, 5410 and 5510 - with 540/1000 rpm PTO

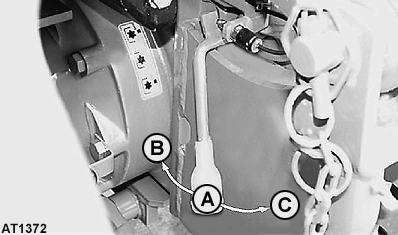

The PTO reducing gear allows the PTO to be operated with the following speeds:

  • A - Neutral
  • B - 540 rpm
  • C - 750 rpm (540E) or optional 1000 rpm
AT1372
