Instruments and Indicator Lights
A - Alternator indicator light
B - Engine oil pressure indictor lights
C - PTO clutch lever engaged indicator
D - Parking brake indicator light
E - Brake oil level indicator light
F - Hi-Lo engaged indicator light
G - Air cleaner restriction indicator light
H - Turn signal indicator light
I - Turn signal indicator light (first trailer)
J - Turn signal indicator light (secound trailer)
K - Low Beam indicator light
L - Full beam indicator light
M - Trailer brake indicator light1
N-Fuel gauge
O-Coolant temperature gauge
P-Hour meter
Q-Tachometer and Engine Speed
Q1-Engine Speed
R-Digital display and Tachometer
|

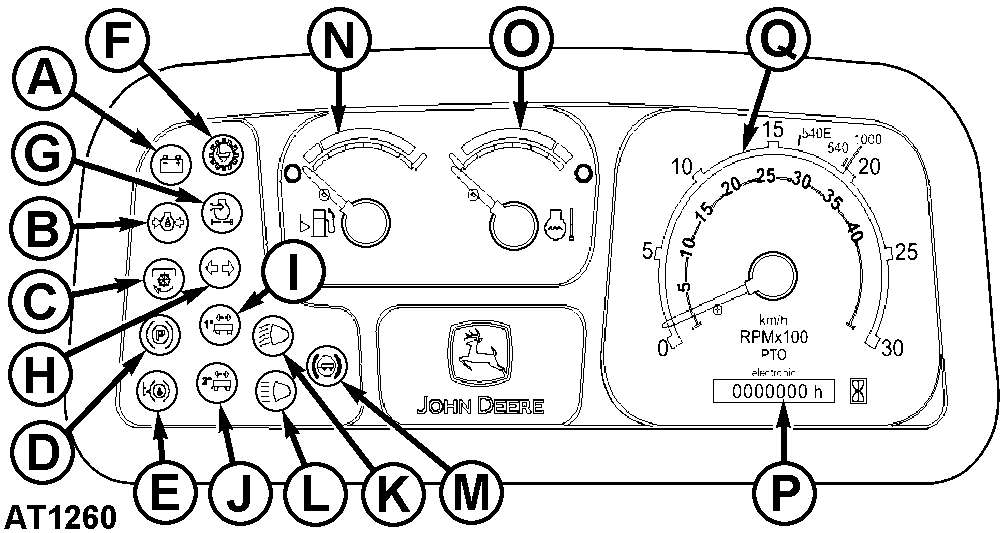

Analogic Version

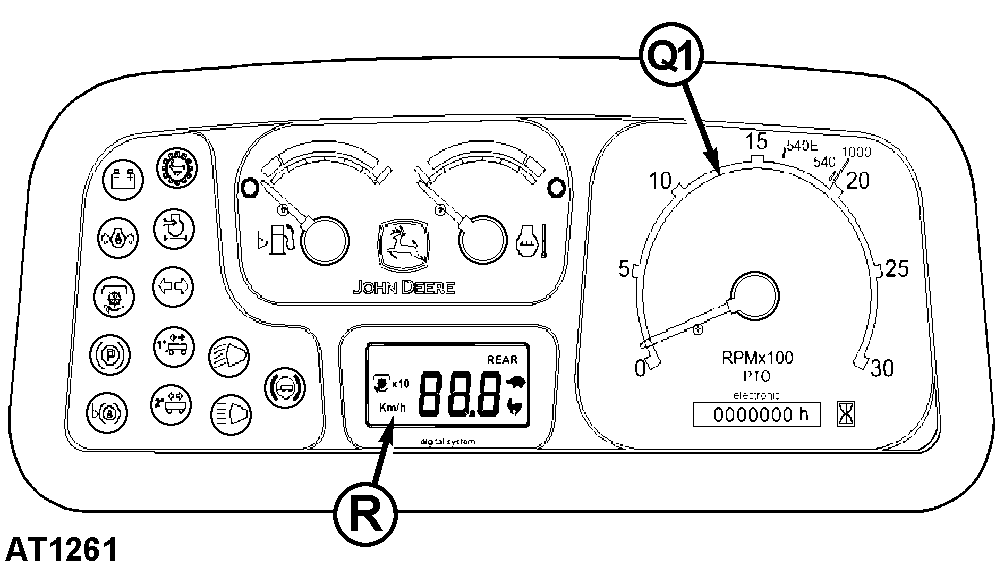

Digital Version
|
