Light and Horn Switch Positions

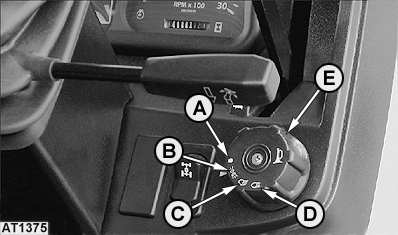

The tractor light/horn switch (E) can be set to the following positions:

A - OFF position; fully counterclockwise

B - First position clockwise; instrument panel, parking and license plate lights

C - Second position clockwise; same lights as in position (B) plus low beam headlights

D - Third position clockwise; same lights as in position (C) plus full beam headlights

E - HORN - Press the center of the light switch to operate the horn.

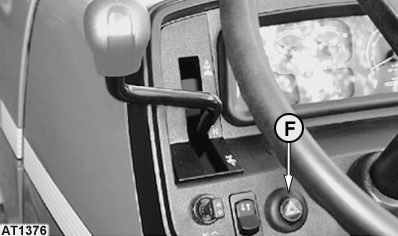

F - HAZARD WARNING LIGHTS - Press the center of the switch to operate the hazard warning lights

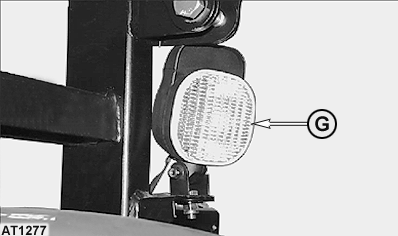

G - REAR WORK LIGHT ¹ - Switch for rear work light (open station tractor). Do not use on public roads as other drivers may be blinded or confused.

NOTE: On tractors with cab the rear work light is switched on by work light switch on the left-hand side of cab roof (see "Operator's Cab Switches" in Section 25 "Operator's Station and Cab").

OULXA64,00001FE -19-20JUN01-1/1
