Seven-Terminal Trailer Socket

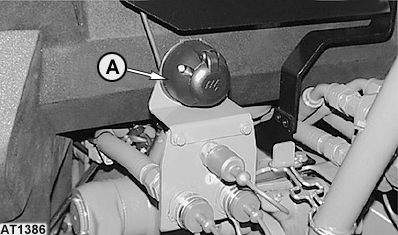

Socket (A) allows lights, turn signals and other electrical equipment on a trailer or implement to be connected. Always use additional lighting on a mounted implement if this conceals the turn signals and other lights at the rear of the tractor.
NOTE:
Suitable plugs can be obtained from your John Deere dealer.

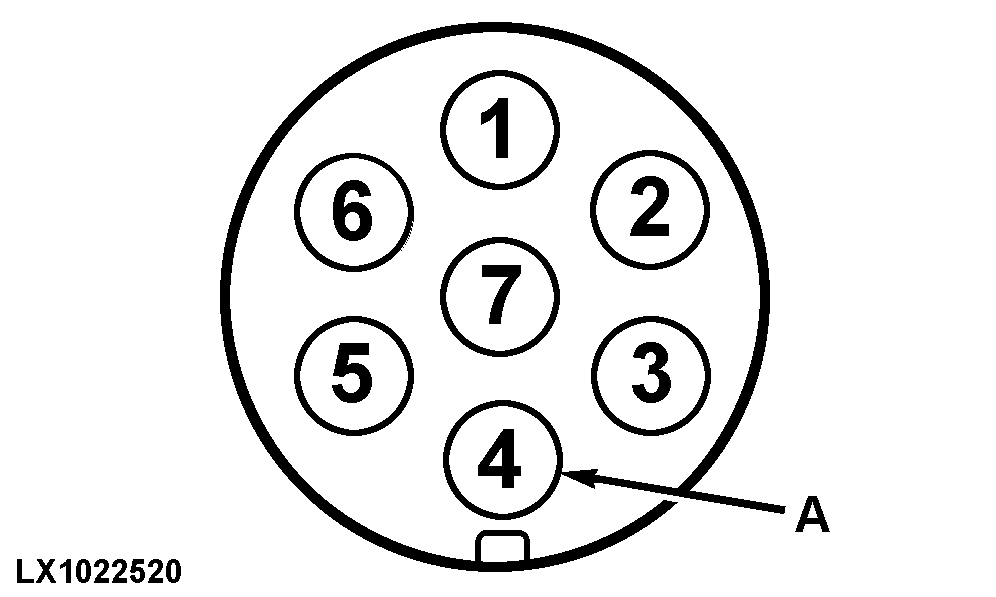

| Connection |
Function |
Wire color |
| |
|
|
| 1 |
L.h. turn signal |
blue/black |
| 2 |
R.h. stop light |
red |
| 3 |
Ground |
black |
| 4 |
R.h. turn signal |
light blue |
| 5 |
R.h. tail light and license plate light |
yellow |
| 6 |
L.h. stop light |
red |
| 7 |
L.h. tail light |
yellow/black |
|
