Seat Adjustment

Adjusting Operator's Seat Position (Standard Seat) for Tractors with ROPS

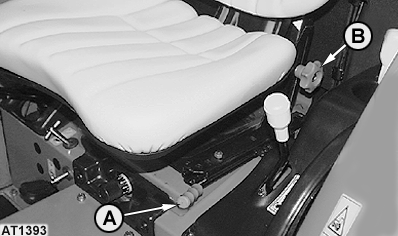

Move lever (A) and slide seat forward or backward to desired position.

To adjust the seat height, loosen handwheel (B) and grip seat between seat cushion and backrest. When seat is at desired height, tighten handwheel (B).

AT1393

OULXA64,0000208 -19-20JUN01-1/5

Adjusting Seat Suspension (Standard Seat) for Tractors with ROPS

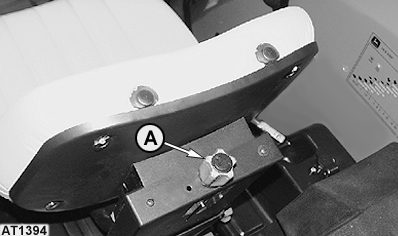

Turn adjusting knob (A) to adjust seat to the weight of the operator. Weight markings are suggested adjustment settings where the seat suspension system will have full vertical travel range.

AT1394

OULXA64,0000208 -19-20JUN01-2/5

Adjusting Operator's Seat Position (Standard and Comfort Seat) for Tractors with Cab

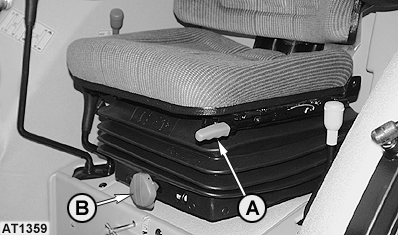

Move lever (A) and slide seat forward or backward to desired position.

To adjust the seat height, operate the hand lever (B).

AT1359

OULXA64,0000208 -19-20JUN01-3/5

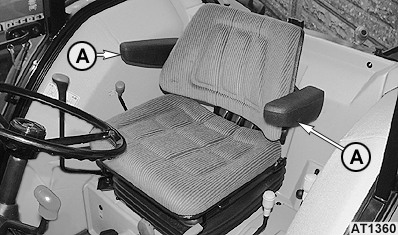

Both seats may be equipped with armrests (A). If required, the rests can be folded up.

AT1360

OULXA64,0000208 -19-20JUN01-4/5

Adjusting Operator's Seat Position (Air Suspension Seat) for Tractors with Cab

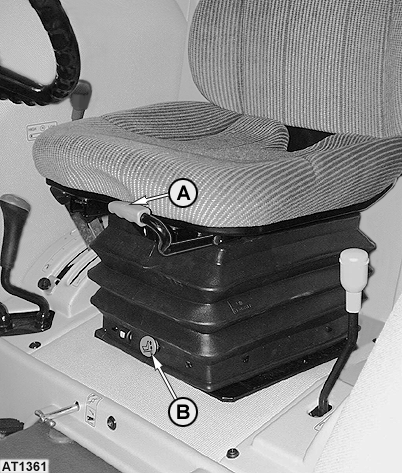

Move the lever (A) and slide seat forward or backward to desired position.

To adjust the seat height, operate the lower knob (B).

AT1361
