Starting the Engine

causym CAUTION: Never operate the engine in a closed building. Make sure there is plenty of ventilation.

Danger of asphyxiation!

1. Set selective control valve levers (C) to neutral position.

2. Move hand throttle lever (A) to a medium speed setting (first third of lever travel).

3. Move reverse drive lever (T) to neutral.

NOTE: The engine will not start if PTO clutch lever (D) is in engaged position.

4. Turn key in main switch (B) clockwise to end position. Release key as soon as engine starts.

IMPORTANT: DO NOT operate starting motor more than 20 seconds at a time. If engine does not start, turn main switch to "zero" position and wait at least one minute for the starting motor to cool before trying again.

Do not adjust hand throttle lever. Run engine for a few minutes. At temperatures below zero, extend warm-up period accordingly.

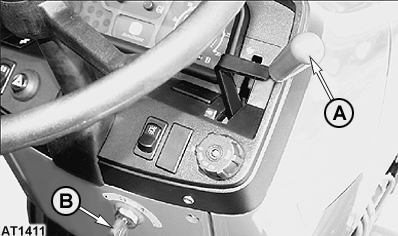

A-Hand throttle lever
B-Main switch

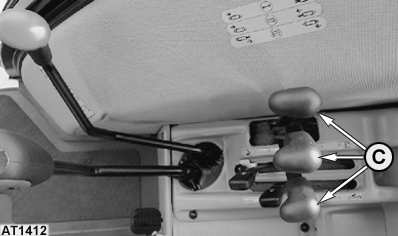

C-Selective control valve levers

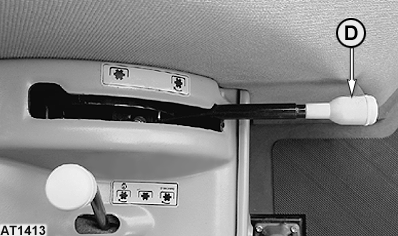

D-PTO clutch lever
T-Reverse drive lever

AT1407
AT1411
AT1412
AT1413

OULXA64,0000215 -19-20JUN01-1/1
