Oil Pressure Indicator

IMPORTANT: NEVER operate engine without sufficient oil pressure. If light glows longer than 5 seconds under normal operating conditions, stop engine and check for cause.

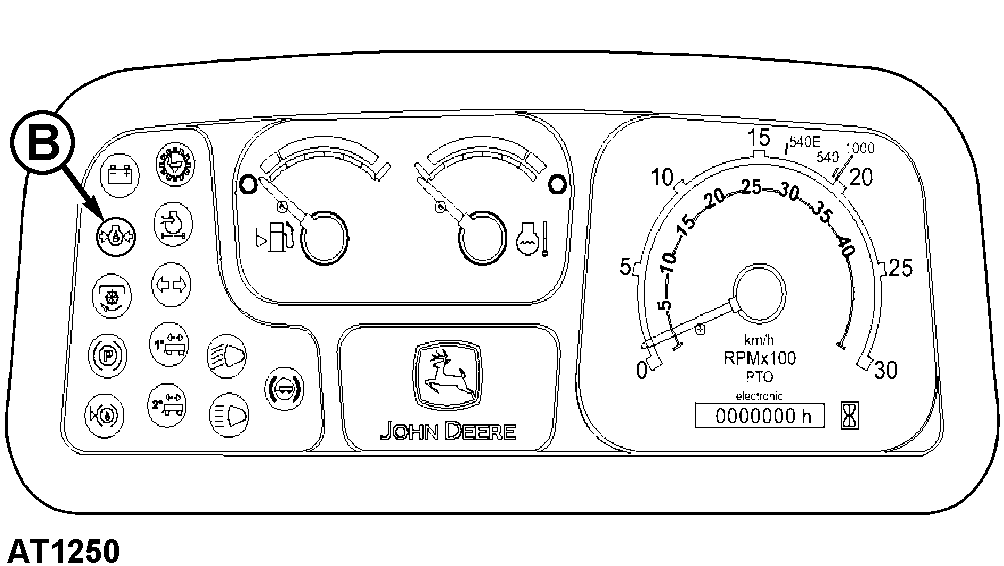

Oil pressure light (B) will glow if engine oil pressure is low. Light should glow when key is turned to engage starting motor and go out when engine starts.

If low oil level is not the problem, see your John Deere dealer.

OULXA64,0000217 -19-20JUN01-1/1
