Cold Weather Starting Procedure Using Intake Air Heater System

CAUTION: DO NOT use starting fluid on a tractor equipped with an intake air heater system (ask your John Deere dealer for a complete list of other starting aids available).

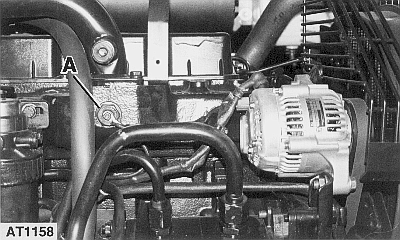

The tractors are equipped with an intake air heater system. An electric heating element (A) warms up the intake air.

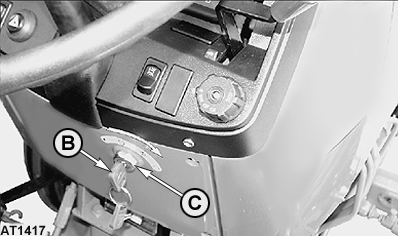

1. Activate the intake air heater system by pushing in the main switch (B) with the key. Hold the key in for 10 to 15 seconds with temperatures down to -18°C (0°F), for 30 seconds with temperatures down to -23°C (-10°F) and up to 45 seconds with temperatures below -23°C (-10°F).

2. Turn main switch clockwise (C) and start engine.

3. If engine runs rough, activate the intake air heater system by pressing in the main switch (B) until engine runs smoothly.

OULXA64,0000223 -19-20JUN01-1/1
