Shifting Transmission

IMPORTANT: To prevent unnecessary wear, never "ride" the clutch by resting a foot on the pedal.

To prevent transmission damage, do not make range shifts on the go.

Range, Gear, Mechanical Splitter and Electro-Hydraulic Hi-Lo Shifts

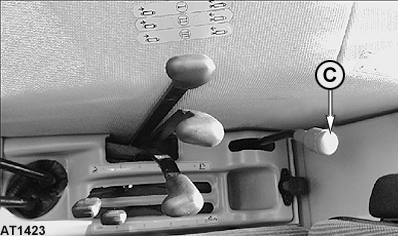

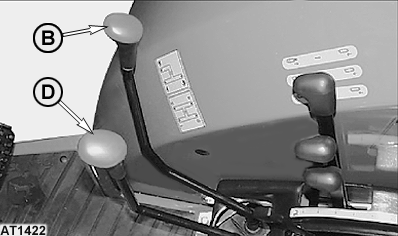

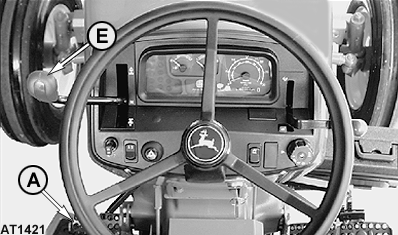

Depress clutch pedal (A) and stop tractor before shifting the range shift lever (B), direction shift (forward/reverse) lever (E) and, if equipped, the Hi-Lo shift lever (C).

Depress clutch pedal (A) before shifting the gear shift lever (D). Gear shifts (1, 2, 3, 4) can be made on-the-go.

Release clutch pedal gradually to take up load smoothly.

AT1421
AT1422
AT1423

OULXA64,0000229 -19-20JUN01-1/3

Electro-Hydraulic Hi-Lo Shifting 1

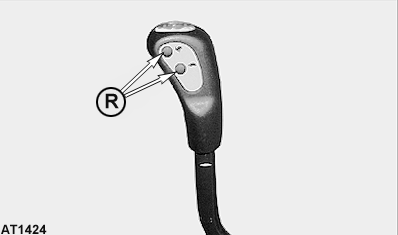

The "Hi" or "Lo" range is activated by operating the switch (R), located on the gear lever.

AT1424

1if equipped

OULXA64,0000229 -19-20JUN01-2/3

Forward/Reverse Shifts

The shift lever (T) has three positions:

  • forward
  • neutral
  • reverse

With clutch pedal depressed, push lever (T) forward from neutral to select forward travel or pull back from neutral to select reverse travel.

AT1407
