Operating Transmission Control Levers

The transmission gear shift lever (D) operates in an H-pattern.

  • Center position is neutral.
  • Move the lever to the left and forward from neutral to select the first gear.
  • Move the lever to the left and rearward from neutral to select the second gear.
  • Move the lever to the right and forward from neutral to select the third gear.
  • Move the lever to the right and rearward from neutral to select the fourth gear.

12 + 12 Speed Transmission (all tractors)

The transmission range lever (B) has three positions:

  • Forward is low range
  • Rearward is high range
  • To the right and forward is creeper
AT1422

OULXA64,000022A -19-20JUN01-1/3

24 + 24 Speed Transmission (40 km/h; 25 mph version) 1

The mechanical Hi-Lo shift lever (C) provides a two-speed additional range (optional):

  • Forward is high range
  • Rearward is low range
AT1423

1if equipped

OULXA64,000022A -19-20JUN01-2/3

Electro-Hydraulic Hi-Lo Transmission

An electro-hydraulic Hi-Lo transmission is available as alternative to the mechanical version.

"Lo" or "Hi" range are operated directly on the go without depressing the clutch pedal and under load by means of control buttons (R) located on the gear shift lever.

  • upper button is for Hi range
  • lower button is for Lo range

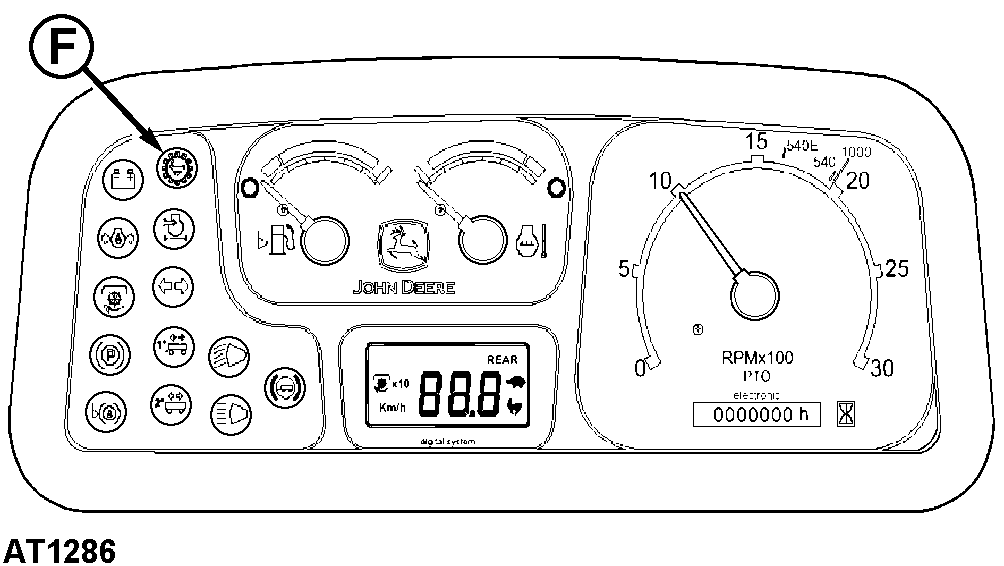

When Hi range is engaged the indicator light (F) at dashboard glow up.

AT1424
AT1286
