Stopping the Tractor

CAUTION: Always engage parking brake before dismounting tractor. Leaving transmission in gear with engine stopped, without engaging parking brake, MAY NOT prevent tractor from moving.

1. Stop tractor using brakes.

2. Place forward/reverse selector lever (T) in neutral position.

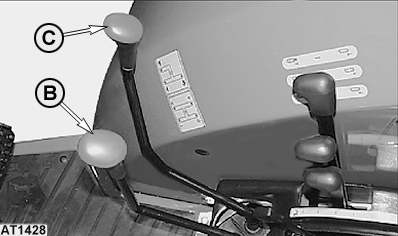

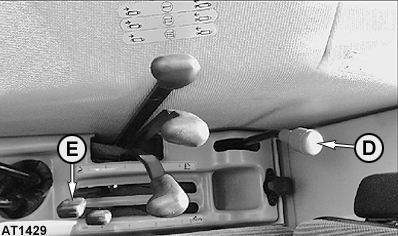

3. Place gear (B), range (C) and Hi-Lo (D) ¹ shift levers in neutral position.

4. Lower equipment to the ground using rockshaft control lever (E).

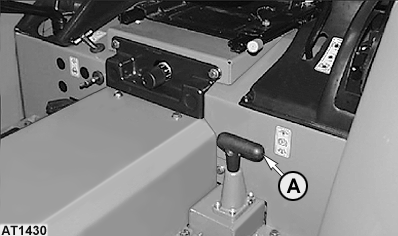

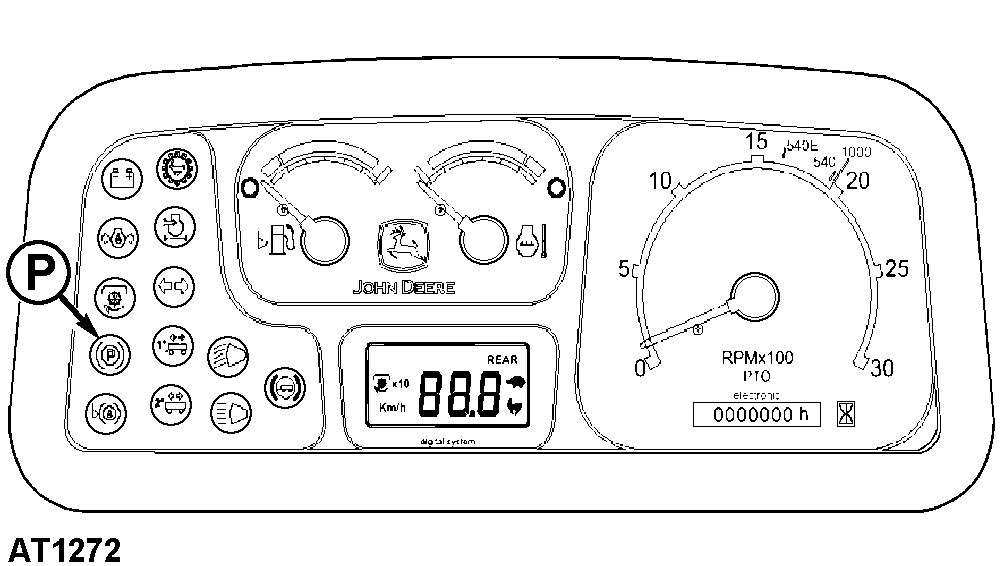

5. Pull lever (A) up to engage parking brake. Lever will lock in raised position and parking brake indicator light (P) will glow.

OULXA64,0000234 -19-20JUN01-1/1
