Hydraulic Trailer Brakes

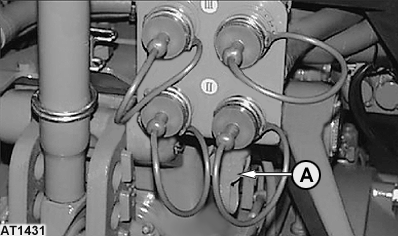

Remove cap from trailer brake coupler (A) and connect pressure hose, making sure connections are absolutely clean.

Press down on brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.

IMPORTANT: To prevent undue wear on the brakes, observe the following points:

Make sure that the pressure hose is connected.

When driving downhill, select the same gear you would for driving uphill.

Check the hydraulic trailer brake regularly to make sure that it is functioning correctly.

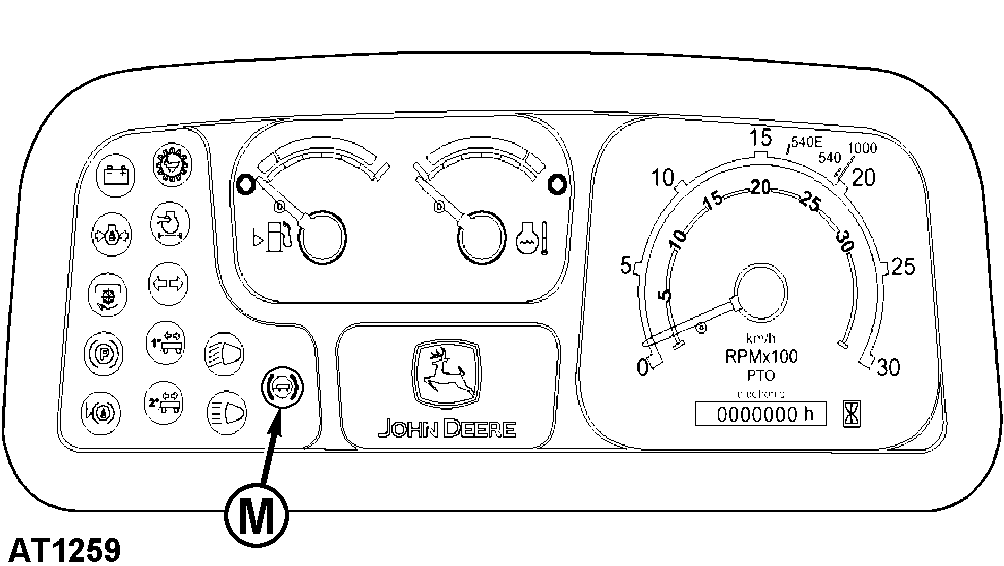

CAUTION: For Italian Version, operating the trailer brake valve, the instrument control light (M) at dash board will glow up if the pressure in the circuit is lower than minimum value of 12.5 bar (181 psi) or until the pressure reaches this value.

OULXA64,0000235 -19-20JUN01-1/1
