Rockshaft Control Levers

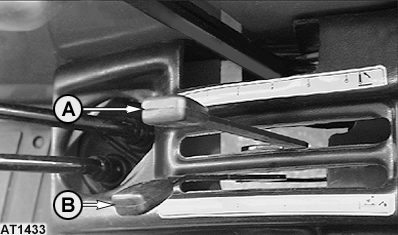

The rockshaft position is controlled by two levers, the position control lever (A) and the draft control lever (B).

The position control lever (A) raises the hitch when pulled rearward and lowers the hitch when moved forward. For further information refer to "Using Rockshaft Position Control".

The draft control lever (B) controls hitch position relative to draft loads. For further information refer to "Using Draft Control".
