Quick-Coupling (Hook-Type) Draft Links

These draft links are intended for Category I and Category II implements. Implements can be attached to and removed from the draft links without the driver having to leave his seat.

OULXA64,0000240 -19-20JUN01-1/4

Attaching implement

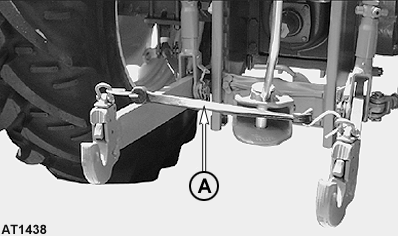

1. Remove adjusting rod (A) 1 .

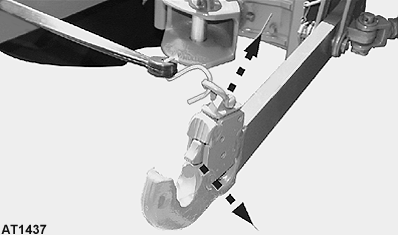

2. With draft links lowered, reverse tractor until the coupler hooks are below the implement hitch pins.

3. Slowly raise draft links until pins are engaged in coupler hooks and locked into position.

4. Adjust center link to the required length and attach to top attaching point of implement mast.

AT1437
AT1438

1if equipped

OULXA64,0000240 -19-20JUN01-2/4

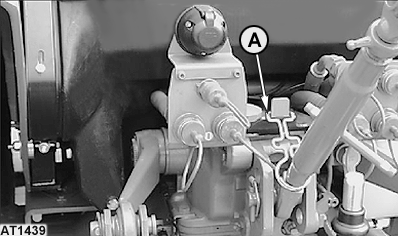

5. To remove center link from transport hook, lift center link locking clip (A).

6. Attach center link to implement top mast.

7. Adjust center link and lift links as necessary (see "Leveling the Hitch" in this Section).

AT1439

OULXA64,0000240 -19-20JUN01-3/4

causym CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler or other attachment is connected to the tractor three- point hitch, check full range of operation for interference, binding or PTO separation.

8. Using position control lever (A), lower and raise implement slowly and check for any point of interference.

IMPORTANT: Make absolutely certain that implement is correctly locked to coupler hooks.

AT1410

OULXA64,0000240 -19-20JUN01-4/4
