Installing Front Weights

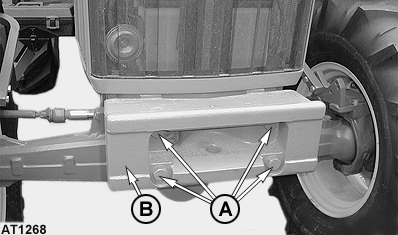

IMPORTANT: Tighten the basic weight attaching screws (A) to 550 N·m (405 lb-ft) and the screws (C) on front weights (D) to 230 N·m (170 lb-ft).

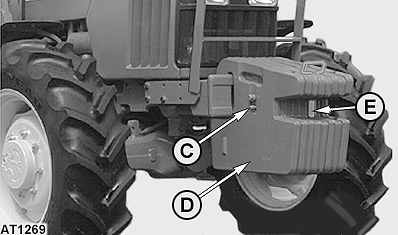

Install the basic weight (B) with screws (A) and place additional weights (D) as required. Secure them with screws (C).

IMPORTANT: When installing six or more front weights, they must be installed to form a jaw (E).

OULXA64,0000249 -19-20JUN01-1/1
