Drawbar

Two types of drawbars are available:

  • Drawbar without vertical load allowed (A)
  • Drawbar with vertical load allowed (B)

NOTE: Only drawbar without vertical load allowed type (A) can be adjusted in length; the other one has a fixed position.

Selecting Drawbar Position

IMPORTANT: For drawn PTO-driven implements, drawbar must be in the short position (as shown) to provide 400 mm (15.7 in.) between drawbar hitch hole (A) and end of PTO shaft.

For maximum traction and efficiency, drawbar should be positioned in the center, short position (see implement operator's manual for more information).

AT1103

Without Vertical Load Allowed Type

AT5190

With Vertical Load Allowed Type

OULXA64,000024E -19-20JUN01-1/3

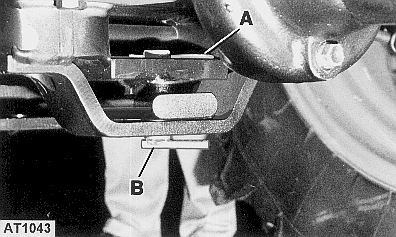

Adjusting Drawbar Length

Remove pin (A) and drawbar pin (B). Slide drawbar to desired position. Re-install drawbar pin (B) and insert pin (A).

AT1043

OULXA64,000024E -19-20JUN01-2/3

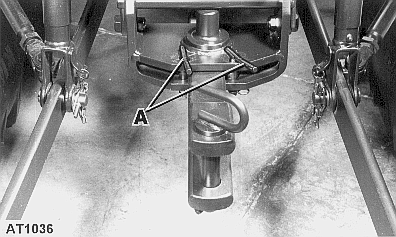

Using Swinging Drawbar

Drawbar pins (A) can be removed to let drawbar swing freely. This is helpful when turning under load.

AT1036

OULXA64,000024E -19-20JUN01-3/3
