Control Lever and Coupler Identification

The tractor can be fitted with:

A - One double acting valve (located on the right-hand side of the seat) with a lock function which holds the control lever in the "Raise" or "Lower" position until it is moved manually.

B - Like configuration (A) plus one single or double acting valves.

C - Like configuration (A) plus one to two double acting valves of which one or both may have the floating position.

D - Like configuration (A) plus one double acting valve with floating position and one single acting valve plus the electro-hydraulic flow control valve to switch priority to rockshaft / SCV valves.

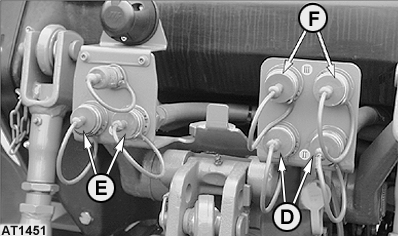

Fore-and-aft movement of lever (A) operates the rear coupler receptacles (E).

Fore-and-aft movement of lever (B) operates the rear coupler receptacles (D) ¹ .

Fore-and-aft movement of lever (C) operates the rear coupler receptacles (F) ¹ .
