Flow Control Valve

The tractor is equipped with a flow control valve that governs the priority of flow to rockshaft and SCV valves.

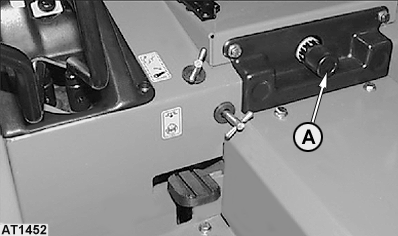

Turning knob (A) clockwise increases the oil flow to selective control valves and decreases at the same time the flow in the rockshaft line.

Turning the knob (A) counterclockwise decrease the oil flow to selective valve line and increases at the same time the flow in the rockshaft line.

As an option a special version of this control valve (electrically operated) is available. This allows to switch priority from rockshaft to SCV control valve line and viceversa.

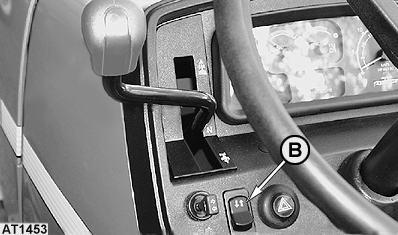

The change of priority is obtained operating the switch (B) at dash board. A inside light will glow up until the switch is switched on.

Normally this operation is made for quick changes of oil flow priority and for a short period of need like operation at end of field when it is necessary to stop implements operated by SCV valves and have more oil flow to quick operate the rockshaft.
