Remote Hydraulic Cylinders

IMPORTANT: The volume of oil required to extend cylinder must not lower transmission- hydraulic oil level below end of dip- stick. Check oil level with cylinder fully extended.

In order for lever to work properly, a single-acting cylinder should be connected only to receptacle (A).

CAUTION: If cylinder response is reversed, extending when it should retract, reverse cylinder hose connections at coupler.

OULXA64,0000255 -19-20JUN01-1/6

Spring pressure returns lever (A), (B) or (C) to a centered position (see arrow). With the control lever in this position, the remote cylinder is hydraulically locked in position.

When released, levers (B) and (C) return automatically to center position because they do not have a detent position.

OULXA64,0000255 -19-20JUN01-2/6

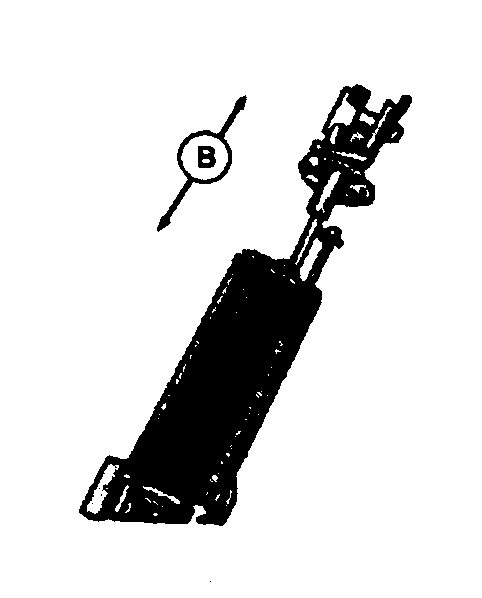

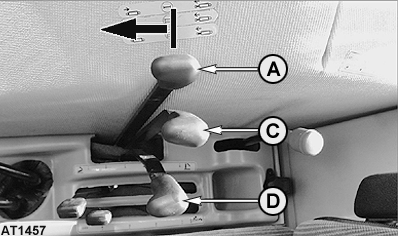

Pull lever (A), (C) or (D) from neutral slightly to the rear and hold it against spring pressure. This retracts cylinder (B) (arrow down) connected to No. I SCV, II SCV or III SCV coupler receptacles. When released, levers (C) and (D) return automatically to center position because they do not have a detent position.

OULXA64,0000255 -19-20JUN01-3/6

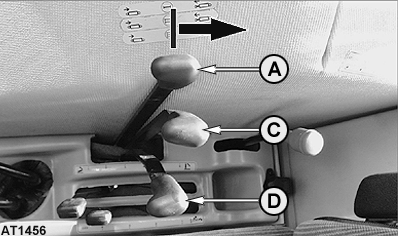

Push lever (A), (C) or (D) slightly forward and hold it against spring pressure. This extends cylinder (B) (arrow up) connected to No. I SCV, II SCV or III SCV coupler receptacles. When released, levers (C) and (D) return automatically to center position because they do not have a detent position.

OULXA64,0000255 -19-20JUN01-4/6

1. If possible, retract remote cylinder as much as possible to protect cylinder rod from damage.

2. With as much hydraulic pressure as possible relieved from hoses, pull hoses from couplers.

3. Make sure dust plugs for receptacles and dust caps for hoses are clean, then reinstall.

OULXA64,0000255 -19-20JUN01-5/6

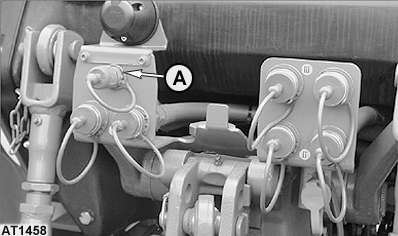

For some applications (front loader for example) it may be necessary to connect the oil return hose to the sump via quick coupler (A).
