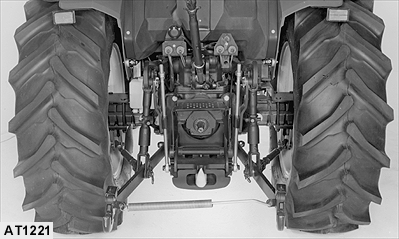

Pick-Up Hitch

This type of hitch is operated via the rockshaft and a bowden cable.

AT1221

OULXA64,0000258 -19-20JUN01-1/3

causym CAUTION: Before attempting to attach an implement, first make sure that it is compatible with the tractor and the pick-up hitch.

Attaching an Implement

causym CAUTION: Make sure no-one is within the hitch's working range.

1. From the operator's seat, raise the draft links fully using position control lever.

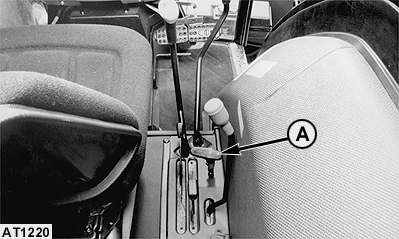

2. Pull handle (A) firmly to unlatch the hitching mechanism.

causym CAUTION: Do not carry out this operation from outside the operator's station or while the tractor is in motion!

3. While the handle is still pulled (latching hooks disengaged) lower three-point hitch to the desired position.

4. Release handle (A).

causym CAUTION: Reverse the tractor in a low gear and do NOT leave the operator's station.

5. Reverse the tractor carefully, making sure that the hook does not dig into the soil. Before hitching up the implement, make sure the latching hooks have been returned to their engaged position by spring force.

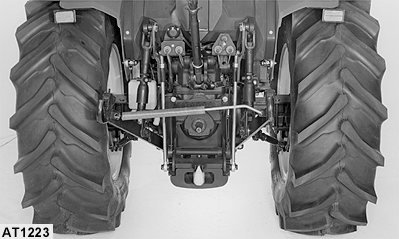

6. Raise the draft links (and thus the pick-up hitch) so that the hook engages in the towing eye of the implement. Continue raising until the bottom frame locks in position behind the locking hooks.

7. Lower the draft links so that the weight of the implement and bottom frame is supported by the hitch frame and not by the lift arms.

8. Make sure that the implement is hitched correctly and locked securely.

AT1223
AT1220

OULXA64,0000258 -19-20JUN01-2/3

Hook/Drawbar

It is possible to replace the hook of the pickup hitch with a drawbar.

To do this, proceed as described previously under points 1 to 4, then SHUT OFF the tractor engine, and change the hook or drawbar. Take care to re-install all securing pins and inspect hitch pivots for obstructions.

If necessary, the drawbar can be swung to the side by moving the appropriate securing pin when the drawbar is being installed or when the hitch is unlatched.

Make sure that the drawbar is not free to swing within the sub-frame while in use, and always operate the tractor with care when towing offset trailed equipment so that the tractor does not become unstable and turn over.

It is possible to adjust the drawbar to two different lengths to suit PTO-driven equipment. Do NOT use the extended position to tow heavy weights.

OULXA64,0000258 -19-20JUN01-3/3
