Towing Tractor

CAUTION: NEVER tow tractor faster than 16 km/h (10 mph). Have an operator steer and brake tractor.

IMPORTANT: To avoid damaging transmission-hydraulic system, observe the following precautions:

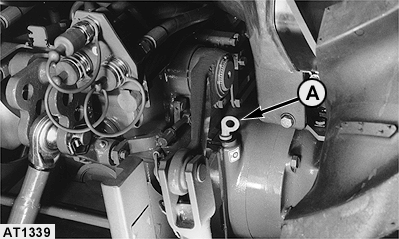

1. Be sure transmission-hydraulic system oil is to the full mark on the dipstick (A). If the tractor is to be towed with the front wheels raised, remove oil plug (B) and add 1 liter of oil for each 90 mm (3-1/2 in.) the wheels are raised. DO NOT raise front wheels more than 305 mm (12 in.) above ground.

NOTE: After transporting tractor, drain oil that was added for towing.

2. Make sure the differential lock is disengaged.

3. Make sure range and gear shift levers are in neutral.

OULXA64,000025A -19-20JUN01-1/1
