Adjusting Rear Wheel Tread
|
|
Rear wheel tread can be adjusted by re-positioning or reversing the rims or by reversing the wheel disks. IMPORTANT: Always mount nuts on rim side. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. The arrow on side wall of tire must then point in the direction of forward travel. IMPORTANT: The distance between the side wall of the tire and the fender must not |

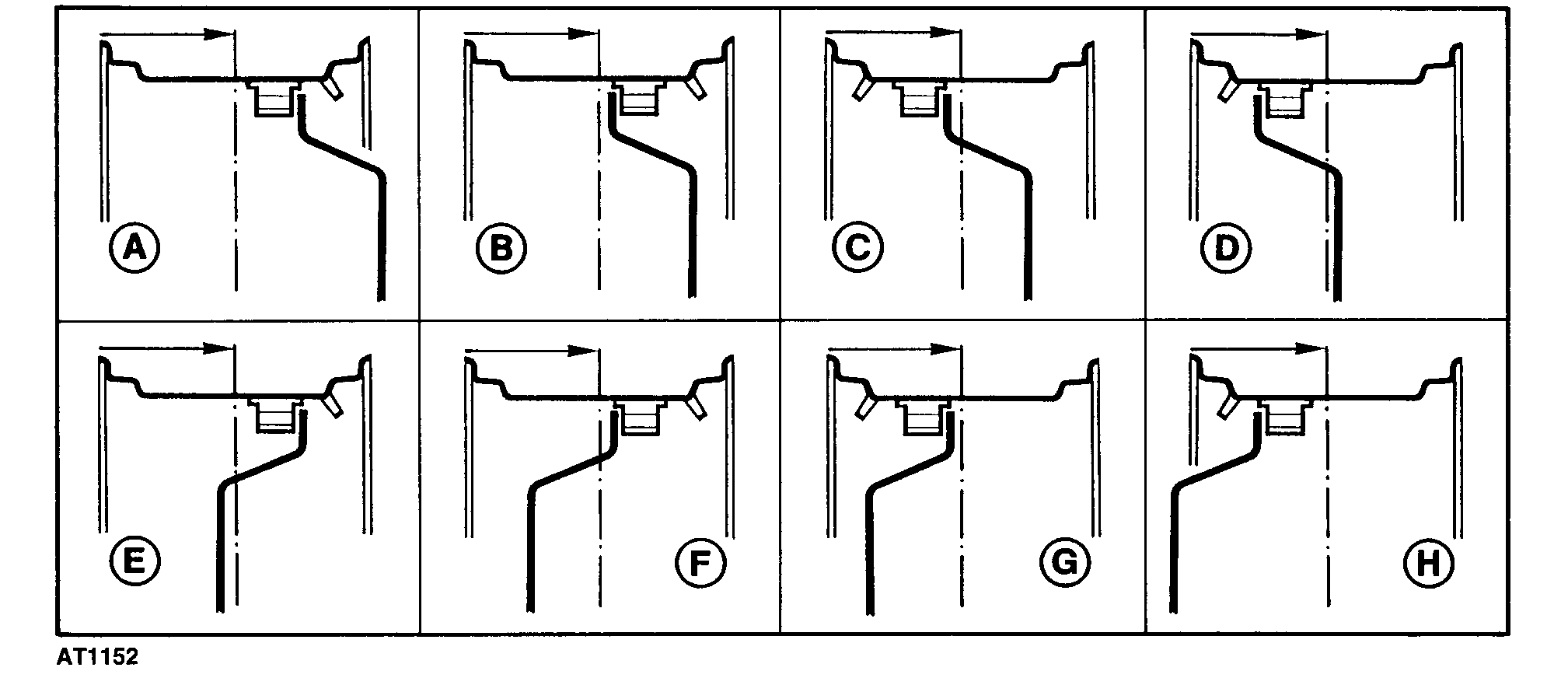

be less than 50 mm (1.97 in.). Distance between edge of tire and fender must not be less than 60 mm (2.36 in.). After adjustment has been completed tighten wheel retaining bolts to specified torque (see in Section 30 "Break-In Period"). NOTE: The illustration shows the right-hand rear wheel. Tread widths are measured at the lowest point of the tires. |
| Position of Rims and Wheel Disks (5310, 5410 and 5510 Tractors) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Tires | A | B | C | D | E | F | G | H |
| 14.9R28 and 14.9R30 |
- | 1298 mm (51.1 in.) |
1400 mm (55.1 in.) |
1498 mm (59 in.) |
1600 mm (63.0 in.) |
1698 mm (66.9 in.) |
1800 mm (70.9 in.) |
1898 mm (74.7 in.) |
| 16.9R30 , 480/70R30 and 420/85R30 |
- | - | 1400 mm (55.1 in.) |
1498 mm (59 in.) |
1600 mm (63.0 in.) |
1698 mm (66.9 in.) |
1800 mm (70.9 in.) |
1898 mm (74.7 in.) |
| 420/70R24 | - | 1408 mm (55.4 in.) |
1510 mm (59.4 in.) |
1602 mm (63.1 in.) |
1496 mm (58.9 in.) |
1588 mm (62.5 in.) |
1690 mm (66.5 in.) |
1782 mm (70.2 in.) |
| 12.4R36 | - | 1492 mm (59.0 in.) |
- | 1312 mm (51.7 in.) |
1792 mm (70.6 in.) |
1892 mm (74.5 in.) |
1612 mm (63.5 in.) |
1712 mm (67.4 in.) |
| Position of Rims and Wheel Disks (5510 HighCrop Version) | ||||||||
| 13.6-38 and 15.5-38 |
1420 mm (55.9 in.) |
1522 mm (59.9 in.) |
1620 mm (63.8 in.) |
1722 m (76.8 in.) |
1820 m (71.7 in.) |
1922 mm (75.7 in.) |
2020 mm (79.5 in.) |
- |
OULXA64,000025C -19-20JUN01-1/1 |
