Adjust Front Axle Tread Width (Tractors without Front Wheel Drive)

IMPORTANT: DO NOT place jack under engine oil pan.

1. Jack up front end of tractor.

2. When making large tread adjustments it may be necessary to change the tie rod length (A) before or during axle adjustments. See Check and Adjust Toe-In for your axle type.

3. Remove four bolts (B) and tapered pins (C) from front axle (2 on each side).

4. Slide axle knees to desired position. Both sides should be adjusted to same spacing. Pins and bolts may have to be moved to the companion holes (D) in some settings.

5. Reinstall axle bolts (B) and pins (C) on each side. Tighten bolts to 500 N·m (370 lb-ft).

6. Set toe-in. See Check and Adjust Toe-In for your axle type.

OULXA64,000025F -19-20JUN01-1/2

IMPORTANT: DO NOT place jack under engine oil pan.

IMPORTANT: If front loader or similar implement is installed on the HighCrop version, the front axle tread has to be set at the minimum width.

1. Jack up front end of tractor.

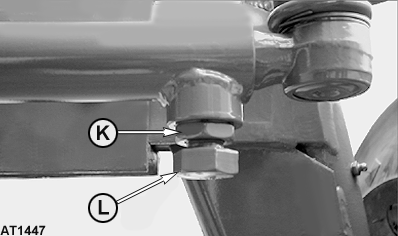

2. When making large tread adjustments it may be necessary to change the tie rod length (A) before or during axle adjustments. Unscrew lock nut (K) and remove bolt (L) to do this. After adjustment tighten lock nut (K) to 210 N·m (180 lb-ft).

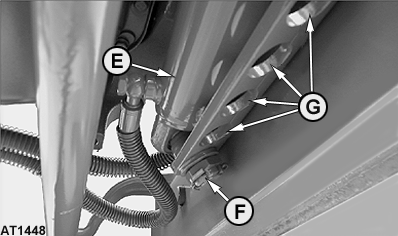

3. Change the steering cylinder (E) anchoring position to axle body in relation to the change of tread width using the available holes (G). Tighten lock nut (F) to 625 N·m (460 lb-ft).

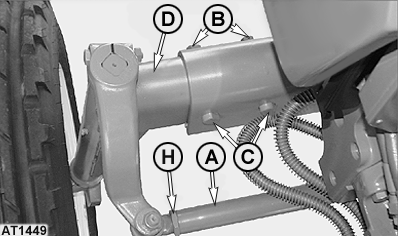

4. Remove nuts (B) and cap screws (C) from front axle (two on each side).

5. Slide axle knees (D) to desired position. Both sides should be adjusted to same spacing.

6. Reinstall cap screws and nuts on each side. Tighten hardware to 150 N·m (110 lb-ft).

7. Set toe-in. Refer to "Check Toe-In" and "Adjust Toe-In" for your axle type in this Section.

Adjust Toe-In- 2 Wheel Drive (5510 HighCrop Version)

1. Loosen lock nut (K) and remove bolt (L).
2. Loosen lock nut (H) on the other side.

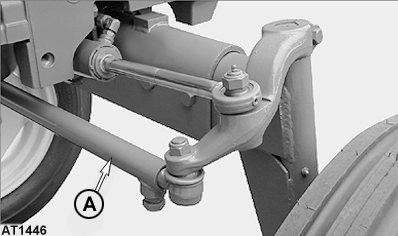

3. Turn tube (A) to lengthen or shorten tie rod until toe-in is 3 to 6 mm ( 1/8 to 15/64 in.)
4. Reinstall bolt (L) and tighten lock nut (K) to 150 N·m (110 lb-ft)
5. Tighten lock nut (H) to 210 N·m (180 lb-ft).

OULXA64,000025F -19-20JUN01-2/2
