Engine Cooling System Components

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

The tractors utilize a remote coolant recovery tank. Make-up coolant is added to the coolant recovery tank rather than directly to the radiator.

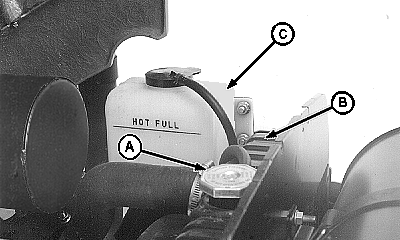

A-Radiator Cap
B-Radiator
C-Coolant Recovery Tank

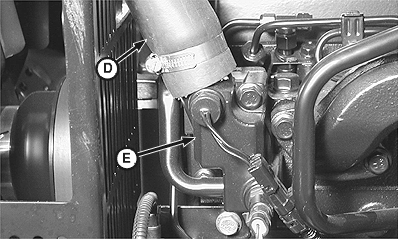

D-Upper Radiator Hose

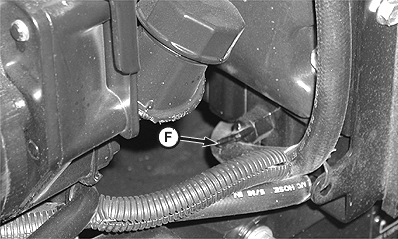

F-Thermostat Housing
G-Radiator Drain

OULXA64,000026E -19-20JUN01-1/1
