Check Transmission-/Hydraulic System Oil Level

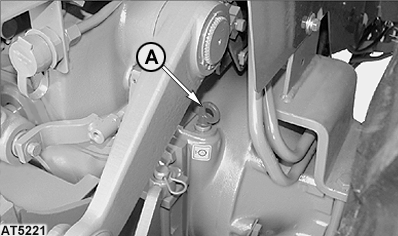

1. Remove dipstick (A) and wipe it clean. Insert dipstick fully. Oil level should be between full mark and end of dipstick.

AT5221

OULXA64,000027F -19-20JUN01-1/2

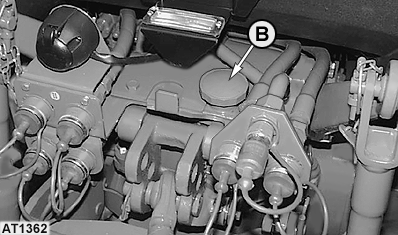

2. Add specified oil (B) if level is low (see Section 80 "Fuel, Lubricants, Hydraulic Oil and Coolant").

AT1362

OULXA64,000027F -19-20JUN01-2/2
