Lubricate Front Axle Pivot Pins

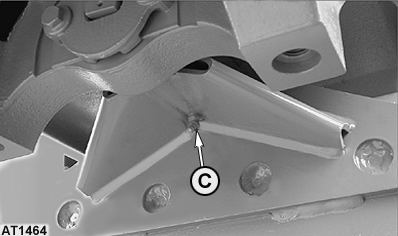

Lubricate front wheel drive front pivot (A) and rear pivot (B) with several shots of multipurpose grease. Adjustable axle pivot pin (C) also requires lubrication of the front and rear pivot bushing zerks with multipurpose grease (see Section 80 "Fuel, Lubricants, Hydraulic Oil and Coolant").

M47187

Front Wheel Drive Axle-Front

M47188

Front Wheel Drive Axle-Rear

M46971

2WD Axle

AT1464

OULXA64,0000282 -19-20JUN01-1/1
