Lubricate Front Axle King Pins

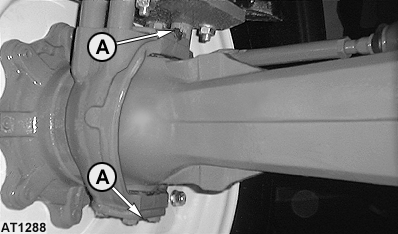

On tractors equipped with front wheel drive axle, apply several shots of multipurpose grease to upper and lower front axle king pins (A).

On tractors equipped with adjustable front axle, apply several shots of multipurpose grease to fitting (C).

OULXA64,0000283 -19-20JUN01-1/1
