Check Coolant Level

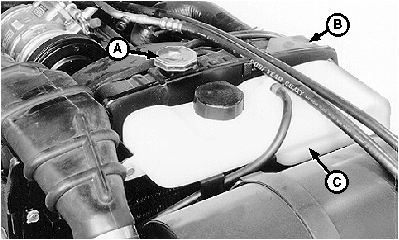

CAUTION: Only remove radiator cap (A) when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.

IMPORTANT: Periodically check coolant level in radiator (B). If cap should become defective, coolant would not be drawn from expansion tank and could cause engine to overheat. Replace cap as necessary.

1. Check level in coolant tank (C).

2. If engine is cool and level is below "LOW" add coolant to expansion tank to bring level to "LOW".

OULXA64,0000285 -19-20JUN01-1/1
