Check Clutch Pedal Free Travel

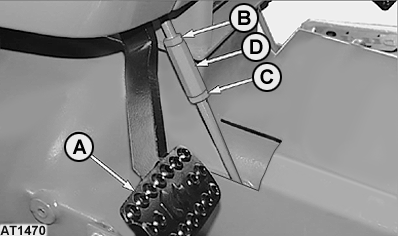

Measure free travel at top of pedal stroke (A). Adjust linkage to obtain 10 to 16 mm (0.4 to 0.6 in.) free travel.

To adjust linkage, loosen lock nut (B) and (C), then rotate rod (D). After making adjustment, recheck travel. When travel is correct, tighten lock nuts (B) and (C).
