Replace Fuel Filter

Replace fuel filter element (A) at least once a year.

1. Remove right-hand engine side shield (see "Removing Side Shields" in Section 85 "Lubrication and Periodic Service" ).

2. Close fuel shut-off valve (B).

3. Remove retaining ring (E) and filter.

4. Install new filter with retaining ring, hand tight.

5. Open fuel shut-off valve (B).

6. Open bleed screw (D).

7. Operate priming pump (C) until fuel flows.

8. Close bleed screw (D).

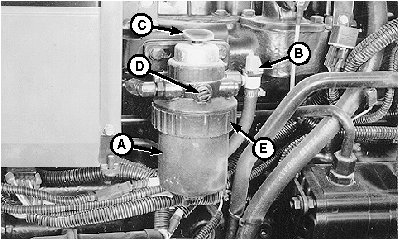

A-Fuel filter element
B-Fuel shut-off valve
C-Priming pump
D-Bleed screw
E-Retaining ring

OULXA64,000028F -19-20JUN01-1/1
