Change Transmission-/Hydraulic Oil Suction Strainer

Drain transmission-/hydraulic oil (see Section 115 "Service-1250 Hours or Every 2 Years").

IMPORTANT: Close all openings with caps or plugs to prevent dirt from entering the system.

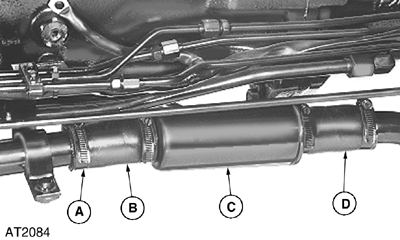

Remove the four hose clamps (A) and hoses (B) and (D).

Replace strainer (C) with a new one, Making sure that the arrow on the strainer body points forward.

Re-install hoses and clamps.

Fill transmission/hydraulic systems with specified oil (see Section 80 "Fuel, Lubricants, Hydraulic Oil and Coolant").

OULXA64,0000293 -19-20JUN01-1/1
