Change Transmission-/Hydraulic Oil and Filter

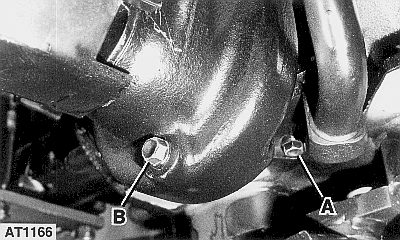

Remove drain plug from transmission case (A) and drain out oil. On tractors equipped with front wheel drive, also remove drain plug (B) in axle housing. Lower rockshaft to remove trapped oil.

AT1166

OULXA64,0000295 -19-20JUN01-1/2

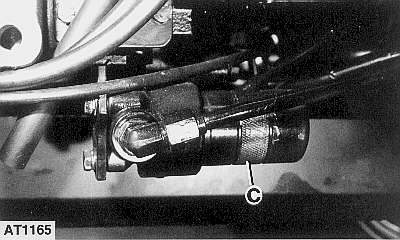

Remove filter (C). Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

Fill transmission/hydraulic system with specified oil (see Section 80 "Fuel, Lubricants, Hydraulic Oil and Coolant") as described in "Check Transmission/Hydraulic System Oil Level" in Section "Service - 50 Hours".

Specification

Two wheel drive tractors -Capacity 36 L (9.5 U.S. gal)
Front wheel drive tractors; 30 km/h (18 mph) version -Capacity 38 L (10 U.S. gal)
Four-wheel drive tractors; 40 km/h (25 mph) version -Capacity 43 L (11.4 U.S. gal)

AT1165

OULXA64,0000295 -19-20JUN01-2/2
