Change Rear Drop Axle Oil (HighCrop Version)
1.

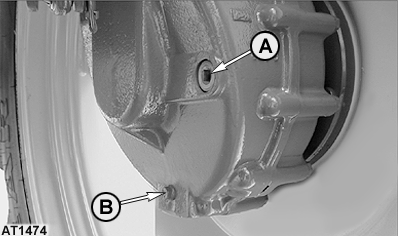

Remove filler plug (A).
2.
Remove drain plug (B). Drain oil, then reinstall plug (B).
3.
Refill from hole of plug (A). Use same transmission oil type.
4.
Reinstall filler plug (A).
Repeat for the other side.
-
Capacity: 3L (0.79 U.S. gal) (each side)
|
