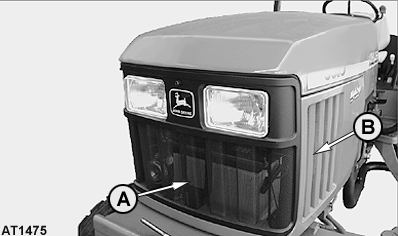

Cleaning Radiator Screens and Oil Cooler ScreensNOTE: To facilitate the cleaning operation carry out the steps described under "Cleaning air conditioning system condenser" in this Section. 1. Whenever trash builds up on front grille screens (A) or side panels (B), stop engine and brush clean. 2. Remove side panels (B), and see if trash has built up on radiator (C). If so, remove it using a brush or compressed air.
3. If a more thorough cleaning is necessary, clean radiator from behind with compressed air or water. Straighten any bent fins. |
|
CAUTION:
Reduce compressed air pressure to less than 210 kPa (2 bar; 30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.
OULXA64,000029A -19-20JUN01-1/1 |
