Cleaning Air Conditioning System Condenser (If Equipped)

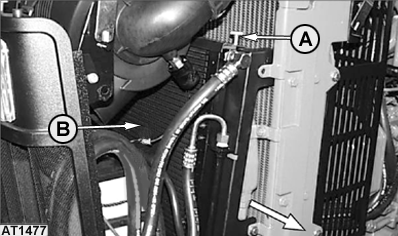

Remove hood side panels and screens. Unscrew knob (A) on each side. Now the condenser (B) can be pulled out for easier cleaning.

NOTE: By this operation oil cooler and radiator can be cleaned easier as well.
