Cleaning Cab Air Filter

causym CAUTION: The cab air filter is not designed to clean the air of harmful chemicals. Follow the instructions given in the implement operator's manual and those given by the manufacturer of the chemicals used.

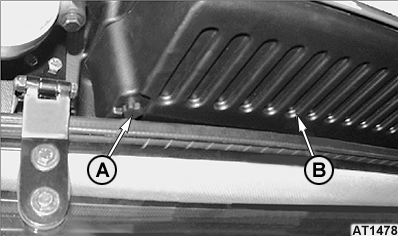

1. Remove the two screws (A) and filter cover (B).

AT1478

OULXA64,00002A1 -19-20JUN01-1/3

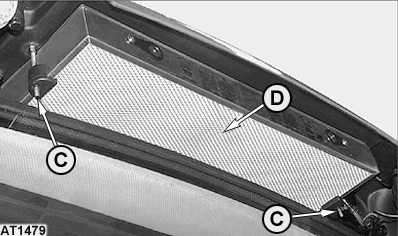

2. Cab Air Filter Element and Screws.Remove the two screws (C) and air filter element (D). Note the position of element for re-installation.

AT1479

OULXA64,00002A1 -19-20JUN01-2/3

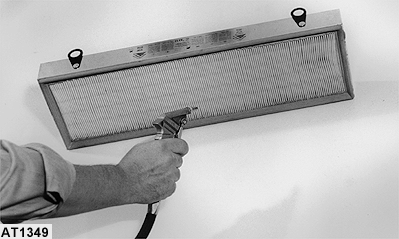

3. Clean element with compressed air following the instructions on the filter.

NOTE: When working in dusty conditions clean filter element frequently. After the filter has been cleaned several times it has to be replaced when it starts to be ineffective.

AT1349

OULXA64,00002A1 -19-20JUN01-3/3
