Storing Tractor

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration. Use AR41785 Engine Storage Kit and an extra 0.95 L (1 U.S. qt.) of corrosion inhibitor.

1. Service air cleaner (A) (see "Servicing Air Cleaner" in Section 130 "Service-As Required").

2. If coolant has been in tractor for two years, flush cooling system and change coolant (see "Change Coolant" in Section 120 "Service-Every 1500 Hours or Two Years"). Test coolant for adequate cold weather protection.

OULXA64,00002A9 -19-20JUN01-1/8

3. Drain engine oil at (C). Change filter (D). Refill engine with fresh oil.

4. Drain fuel and add back 4 L (1 U.S. gal.) of fuel. Then add 0.4 L (12 oz.) of corrosion inhibitor.

OULXA64,00002A9 -19-20JUN01-2/8

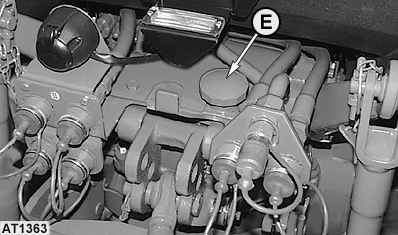

5. Add 0.25 L (9 oz.) of corrosion inhibitor to transmission-hydraulic system (E).

6. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.

OULXA64,00002A9 -19-20JUN01-3/8

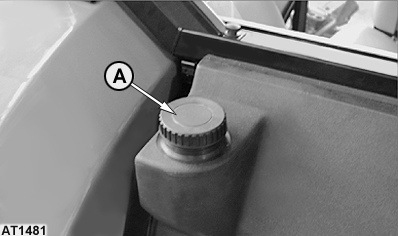

7. Add 0.5 L (16 oz.) more inhibitor to fuel tank (A).

OULXA64,00002A9 -19-20JUN01-4/8

8. Add 0.5 L (16 oz.) of inhibitor to engine crankcase (B).

OULXA64,00002A9 -19-20JUN01-5/8

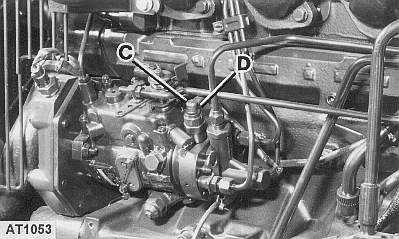

9. Remove boot (C) and disconnect fuel shut-off solenoid wiring lead (D). This will prevent engine from starting while cranking.

10. Remove air intake hose at manifold. Pour 0.1 L (3 oz.) of inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

11. Loosen fan belt after it has cooled.

12. Remove and clean battery. Store in a cool, dry place. Keep it charged.

13. Tie or block clutch pedal in the disengaged position.

14. Coat exposed metal surfaces, such as 2WD axles, if extended, with grease or a corrosion inhibitor.

OULXA64,00002A9 -19-20JUN01-6/8

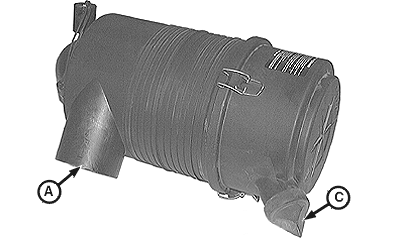

15. Use tape to seal inlet hole (A), dust unloader valve (C), exhaust pipe, crankcase filler/breather (B), fuel cap, and coolant recovery tank.

16. Cover dash with opaque material to prevent gauges from fading.

17. Raise tires off ground. Protect them from heat and sunlight.

18. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

19. If tractor must be stored outside, cover it with a waterproof material.

OULXA64,00002A9 -19-20JUN01-7/8

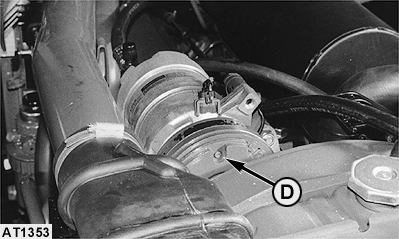

IMPORTANT: On tractors with cab, rotate air conditioning system compressor pulley (D) several turns once a month to prevent compressor seizure.

OULXA64,00002A9 -19-20JUN01-8/8
