Speed-Hour Meter

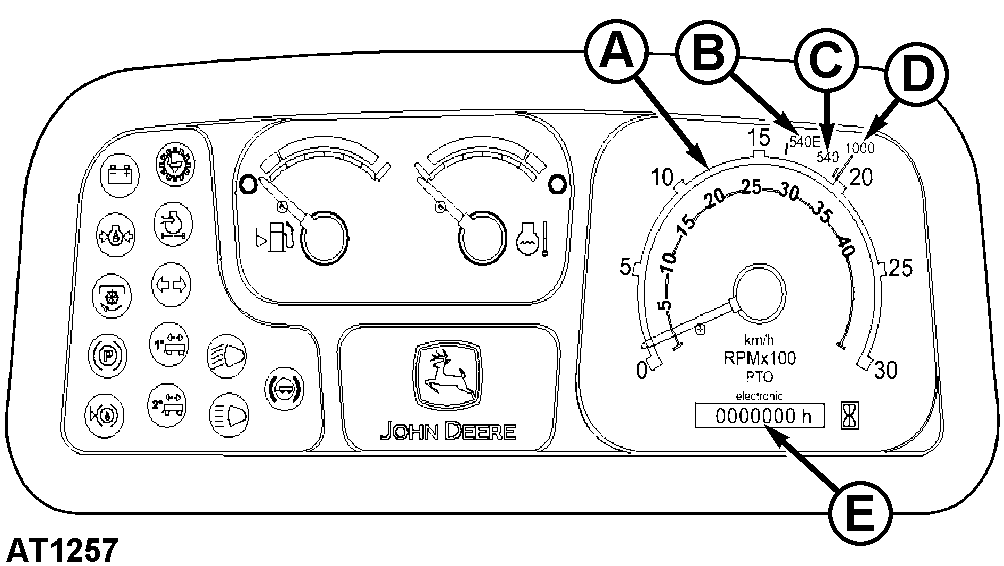

Tachometer (A) shows engine rpm, read in hundreds.

On the analogic version, the tachometer also shows the approximate value of the tractor's four ground speeds (fast range; road travel) in relation to the engine revolutions.

For standard 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 1938 rpm mark (C).

For 540E PTO operation, increase engine speed until tachometer needle is aligned with 1648 rpm mark (B).

For 1000 PTO operation, increase engine speed until tachometer needle is aligned with 1962 rpm mark (D)

Hour meter (E) shows hours of operation in full hours and tenths.

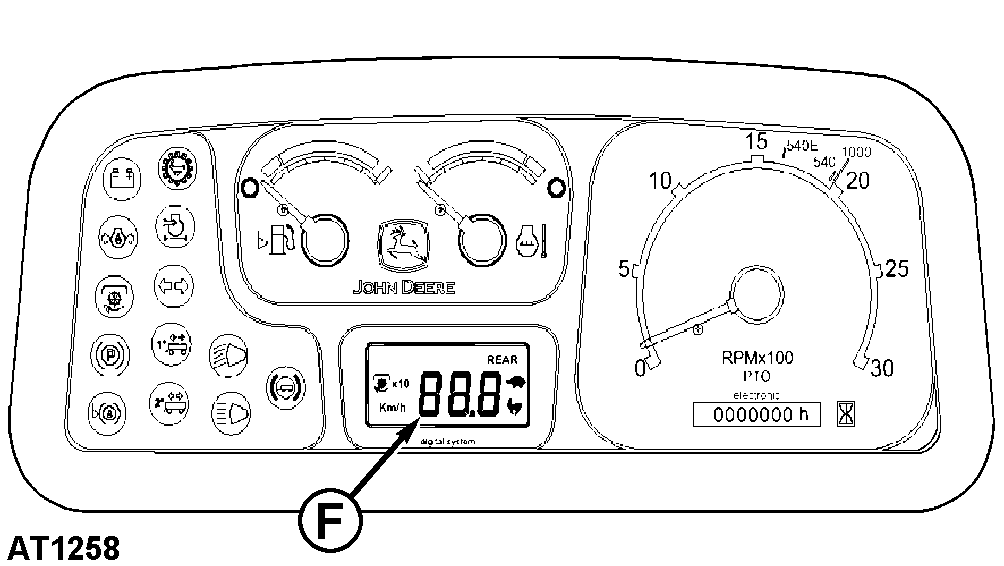

On the digital instrument version, tractors speeds and PTO speeds are shown in the display (F):

• basically the display shows the tractor speeds

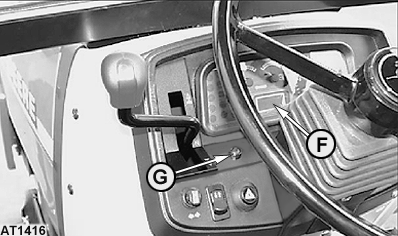

• press the button (G) on the dash board to display the rear PTO speed.

  In relation to the selected speed, the turtle symbol (540rpm) or rabbit symbol (540E or 1000 rpm) will be also displayed.
