Adjusting Rockshaft Control Lever Friction

IMPORTANT: Ensure the engine is not running and the hitch is at lowered position.

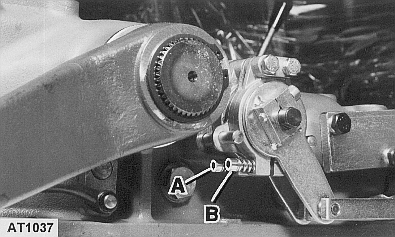

If rockshaft position control lever or draft control lever do not stay in set position, increase relevant lever friction by tightening draft control lever bolt (A) and/or position control lever bolt (B) until the desired friction is obtained.
