Height Adjustable Trailer Hitches

These hitches can be adjusted up or down according to the implement height and to obtain clearance for the center link or PTO operation.

Depending on legal requirements in the different countries, hitches of EEC or CUNA type are available.

OULXA64,0000322 -19-28JUN01-1/4

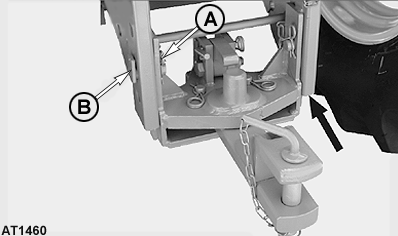

1. To adjust hitch height, remove locking pin (A) on each side.

2. Support hitch safely and remove side pins (B).

3. Move hitch to the required position, re-install side pins, remove support and install locking pins.

OULXA64,0000322 -19-28JUN01-2/4

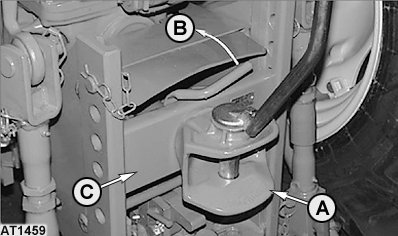

1. Support hitch (A) with one hand and with the other hand pull quick release lever (B) to the left.

2. Move hitch (C) to the required position and push the quick release lever (B) to the left and down to lock it.

3. Make sure that the side locking pins have fully engaged in the side support slots.

NOTE: If necessary, hitch (A) can be completely removed by the end stroke.

OULXA64,0000322 -19-28JUN01-3/4

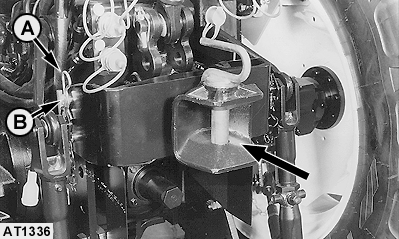

1. To adjust hitch height, remove locking pin (A) on each side.

2. Support hitch safely and remove side pins (B).

3. Move hitch to the required position, re-install side pins, remove support and install locking pins.
