Fuses and Relays

IMPORTANT: To prevent damage to the electrical system, NEVER use a fuse with a rating higher than the one already installed. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse.

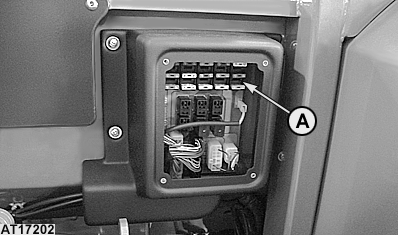

The fuse box (A) is located behind the operator's seat, under the SCVs.

NR25796,0001262 -19-13MAR08-1/5

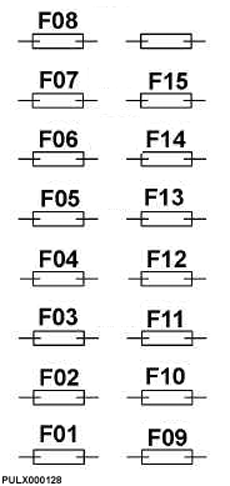

F01-10 amp fuse, safety PTO switch, transmission speed sensor
F02-10 amp fuse, 3-terminal socket, air suspension seat, rear work light with switch
F03-10 amp fuse alternator, charging indicator light, fuel shut-off solenoid valve, fuel pump, cab
F04-10 amp fuse, horn
F05-5 amp fuse, 7-terminal socket, clearance light l.h., tail light r.h., licence plate light
F06-5 amp fuse, 7-terminal socket, clearance light r.h., tail light l.h., instrument panel light
F07-15 amp fuse, turn lights via warning light switch
F08-7.5 amp fuse, relay K05, Hi-Lo switch, reversal switch for allocation (flow divider solenoid valve)
F09-15 amp fuse, trailer brake relay, brake pedal switch
F10-7,5 amp fuse, relay K04, differential lock switch, front-wheel drive switch
F11-10 amp fuse, low beam lights
F12-15 amp fuse, 24/12-speed transmission circuit
F13-25 amp fuse, 3-terminal socket
F14-10 amp fuse, beacon light, clock, warning light switch
F15-15 amp fuse, high beam indicator and high beam lights

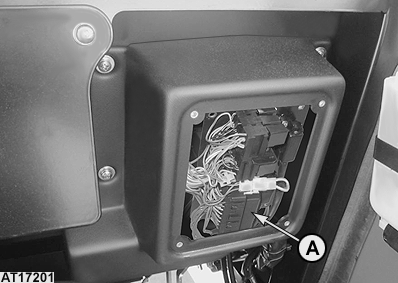

K02-Relay, Hi-Lo solenoid valve (ON), high position
K03-Relay, Hi-Lo solenoid valve (OFF), low position
K04-Relay, differential lock (ON)
K05-Relay, front-wheel drive solenoid valve
K06-Relay, differential lock (OFF)
K07-Relay, neutral start with PTO switch disengaged

NR25796,0001262 -19-13MAR08-2/5

F01-10 amp fuse, safety PTO switch, transmission speed sensor
F02-10 amp fuse, 3-terminal socket, air suspension seat, rear work light with switch
F03-10 amp fuse, alternator, charging indicator light, fuel shut-off solenoid valve, fuel pump, cab
F04-10 amp fuse, horn
F05-5 amp fuse, 7-terminal socket, clearance light l.h., tail light r.h., licence plate light
F06-5 amp fuse, 7-terminal socket, clearance light r.h., tail light l.h., instrument panel light
F07-15 amp fuse, turn lights via warning light switch
F08-7.5 amp fuse, relay K05, Hi-Lo switch, reversal switch for allocation (flow divider solenoid valve)
F09-15 amp fuse, trailer brake relay, brake pedal switch
F10-7,5 amp fuse, relay K04, differential lock switch, front-wheel drive switch
F11-10 amp fuse, low beam lights
F12-15 amp fuse, 24/12-speed transmission circuit
F13-25 amp fuse, 3-terminal socket
F14-10 amp fuse, beacon light, clock, warning light switch
F15-15 amp fuse, high beam indicator and high beam lights
K02-Relay, Hi-Lo solenoid valve (ON), high position
K03-Relay, Hi-Lo solenoid valve (OFF), low position
K04-Relay, differential lock (ON)
K05-Relay, front-wheel drive solenoid valve
K06-Relay, differential lock (OFF)
K07-Relay, neutral start with PTO switch disengaged

NR25796,0001262 -19-13MAR08-3/5

IMPORTANT: To prevent damage to the electrical system, NEVER use a fuse with a rating higher than the one already installed. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

Main fuses are installed for protection of the electrical system.

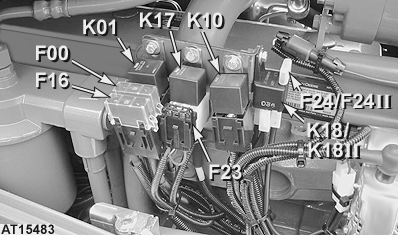

The main fuses and relays are located on r.h. side of the engine near the alternator.

F00-50 amp main fuse for main wiring circuit
F16-50 amp main fuse for cab wiring circuit¹
F23-7.5 amp fuse for shut-off system circuit (EHM)¹
F24-20 amp fuse for electronic hitch sensing circuit (EHS)¹
K01-Starter relay
K10-Intake air heater relay¹
K17-Relay of shut-off system (EHM)¹
K18-Relay of electronic hitch sensing (EHS)¹

NR25796,0001262 -19-13MAR08-4/5

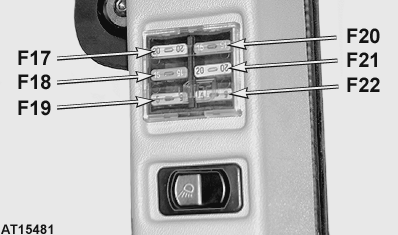

The cab fuses are located in the post on the right-hand side.

The fuses protect the following circuits:

F17-20 amp fuse, 3-speed switch (fan/air-conditioning)
F18-15 amp fuse, front and rear wiper and windshield washer system
F19-5 amp fuse, front work light indicator and radio
F20-15 amp fuse, rear work lights
F21-20 amp fuse, front work lights
F22-5 amp fuse, dome light and radio

NR25796,0001262 -19-13MAR08-5/5
