Converting Category II Hitch to Category IN or Category I

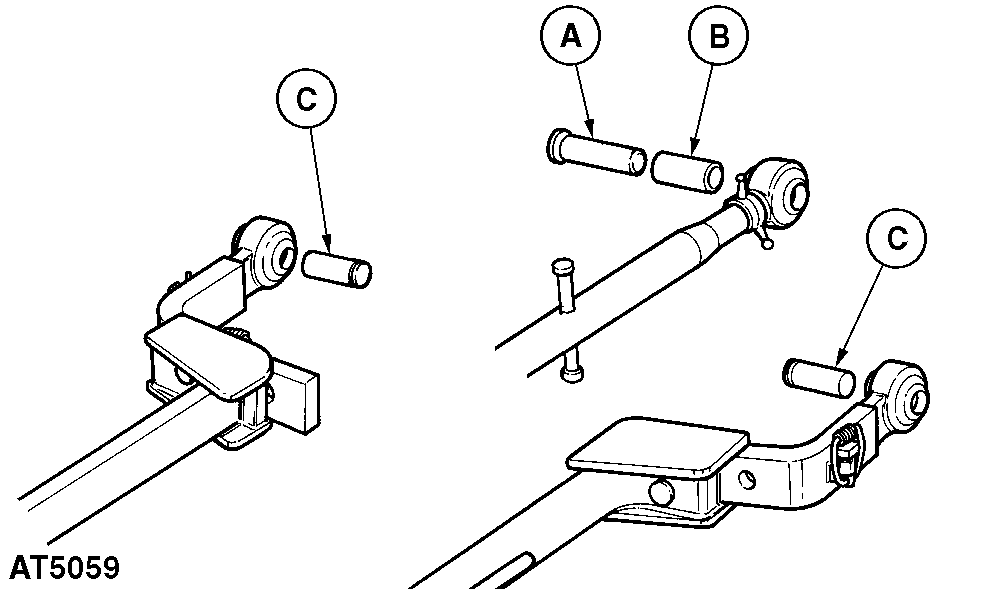

AT5059-UN-28AUG97

Tractor center link and draft link ends are sized for Category II implement attaching pins.

If Category IN or Category I implements are to be used, the Category II hitch can be converted as follows:

Install bushing (B) to reduce diameter of center link end. Smaller implement mast pin (A) is also needed when bushing is installed.

Install bushings (C) in end of draft links.

See your John Deere dealer for parts.

NOTE: Refer to “Positioning Draft Link Ends” in this section for further information on hitch conversions.
