Prepare the Implement

LV616-19-13JUN94

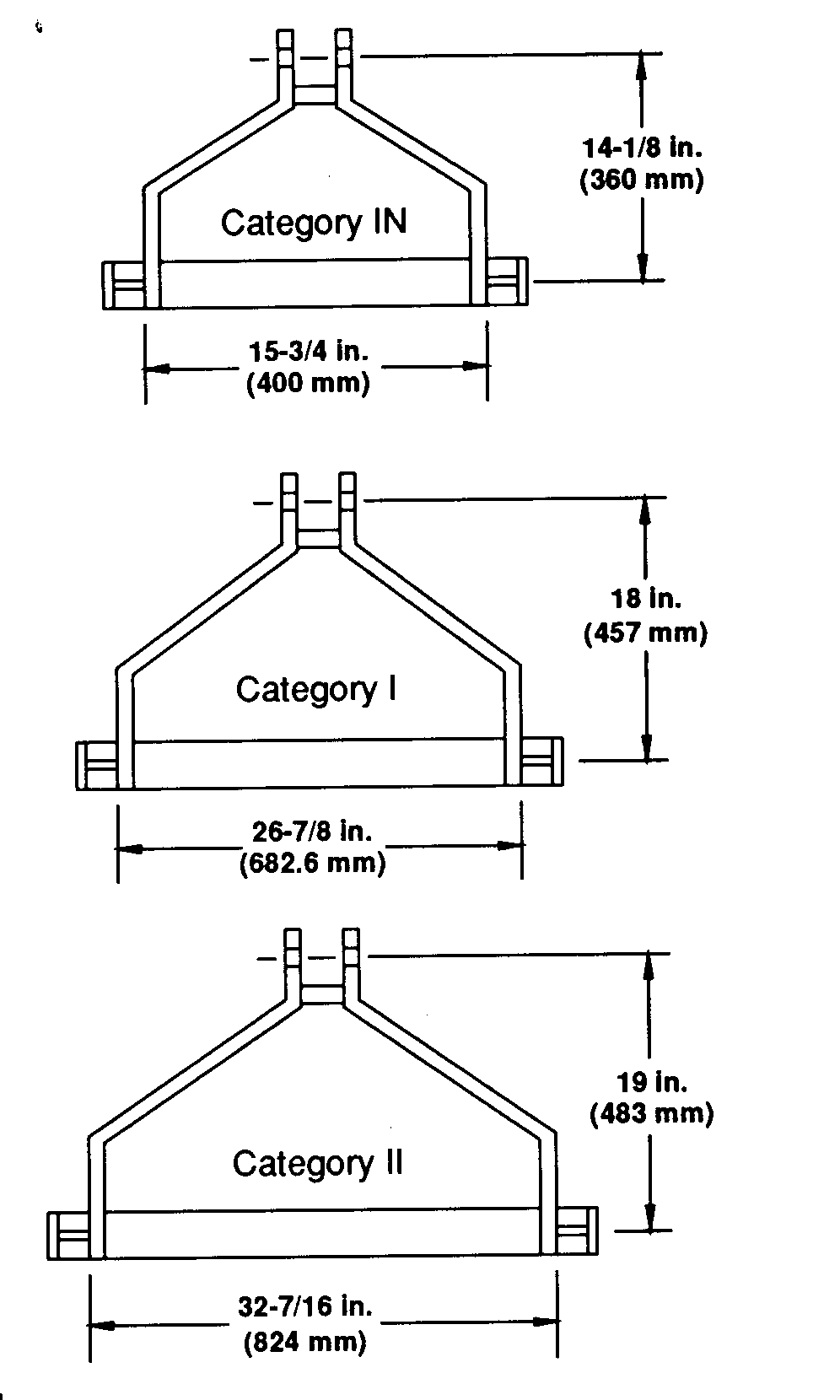

Category IN and I, 3-Point Hitches are narrower and used on smaller implements than Category II implements. Refer to the chart below to identify implement category.

Category II implements should have the top hole of the implement mast located 483 mm (19 in.) above the lower pins. Drill another hole in top mast or extend top mast if necessary.

			Pin Sizes
Hitch Category	Mast Height	Width Between Lower Pins	Lower	Upper
IN	360 mm (14-1/8 in.)	400 mm (15-3/4 in.)	22 mm (7/8 in.)	19 mm (3/4 in.)
I	457 mm (18 in.)	682.6 mm (26-7/8 in.)	22 mm (7/8 in.)	19 mm (3/4 in.)
II	483 mm (19 in.)	824 mm (32-7/16 in.)	28 mm (1-1/8 in.)	25.4 mm (1 in.)
